Power Mirror Switch: Testing and Inspection

INSPECTION

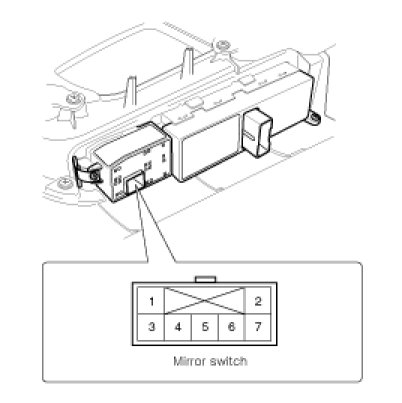

1. Remove the power door mirror switch from the door trim panel.

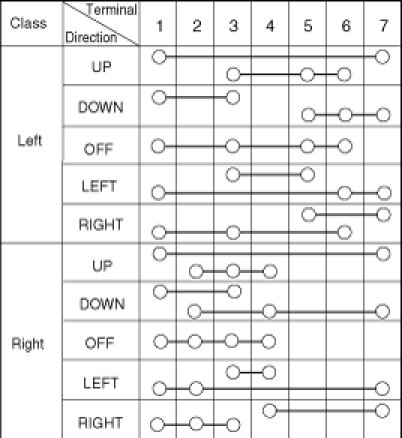

2. Check for continuity between the terminals in each switch position according to the table.
