KAB Driver Connector End Views

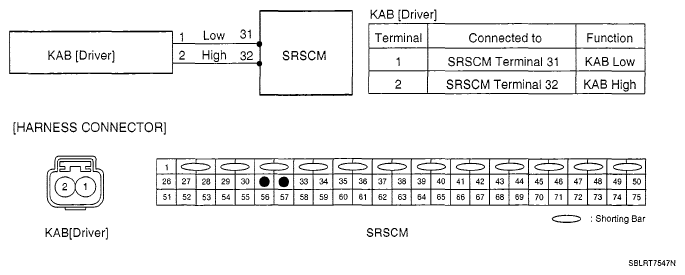

Fig 1: KAB Driver Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
