Engine Compartment Fuse/Relay Box: Notes

NOTE: Engine compartment fuse/relay box is located on driver's side of engine compartment, at fender panel. See Fig 1.

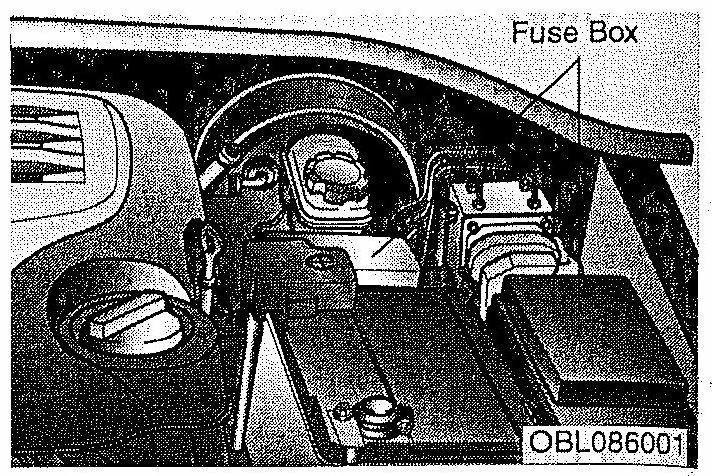

Fig 1: Locating Fuse Boxes - Engine Compartment

Courtesy of KIA MOTORS AMERICA, INC.

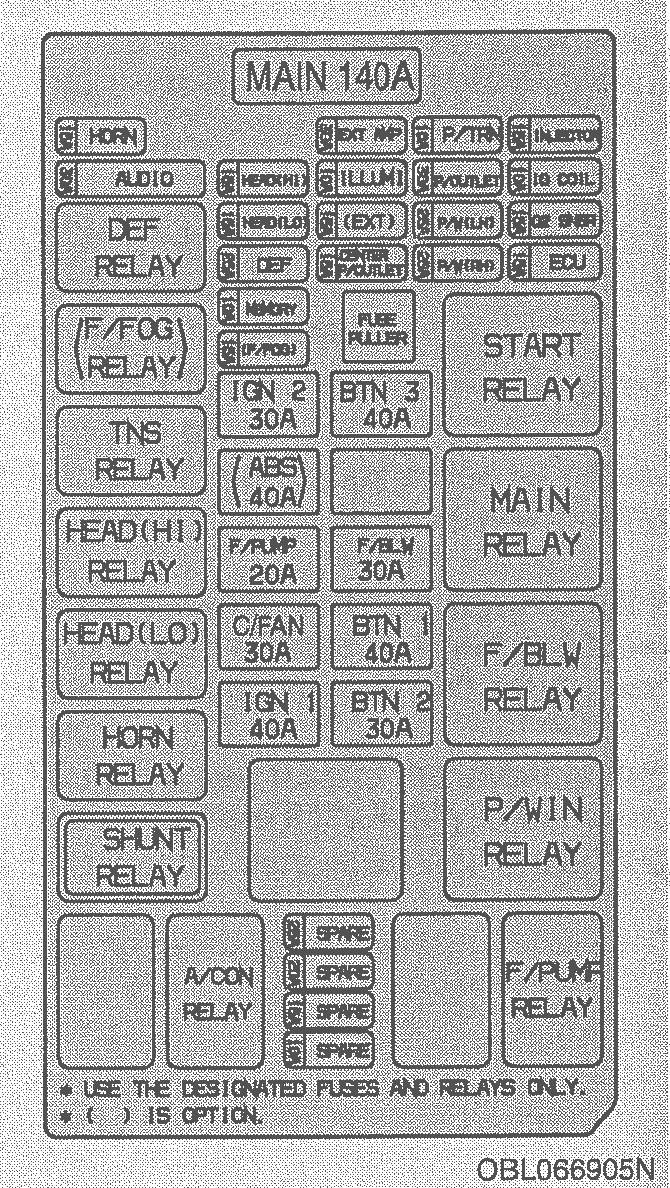

Fig 2: Identifying Relay Box - Engine Compartment

Courtesy of KIA MOTORS AMERICA, INC.

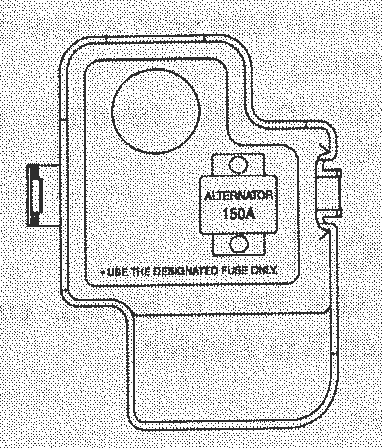

Fig 3: Identifying Alternator 150A Fuse Box - Engine Compartment

Courtesy of KIA MOTORS AMERICA, INC.

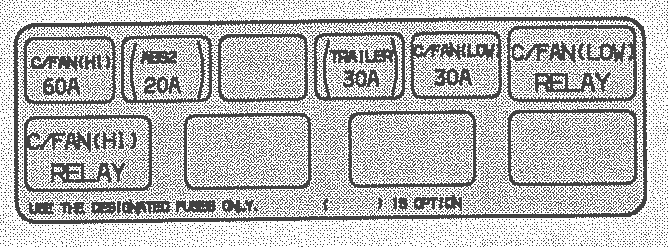

Fig 4: Locating & Identifying Fuse & Relay Components - Engine Compartment

Courtesy of KIA MOTORS AMERICA, INC.
