Automatic Transaxle System: Operation: Notes

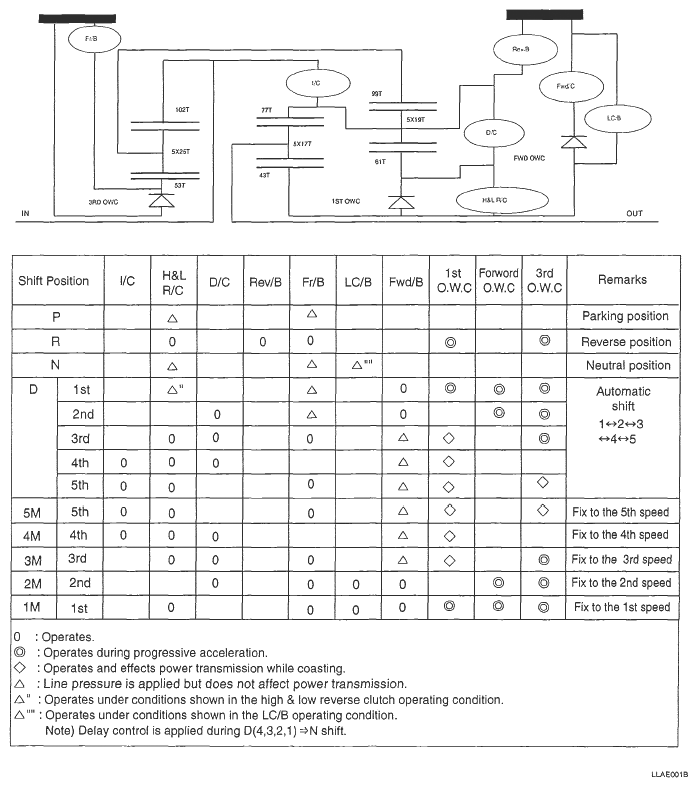

Fig 1: Operation Diagram Of Automatic Transaxle System
G05119177Courtesy of KIA MOTORS AMERICA, INC.
