Electronic Brake Control Module: Testing and Inspection

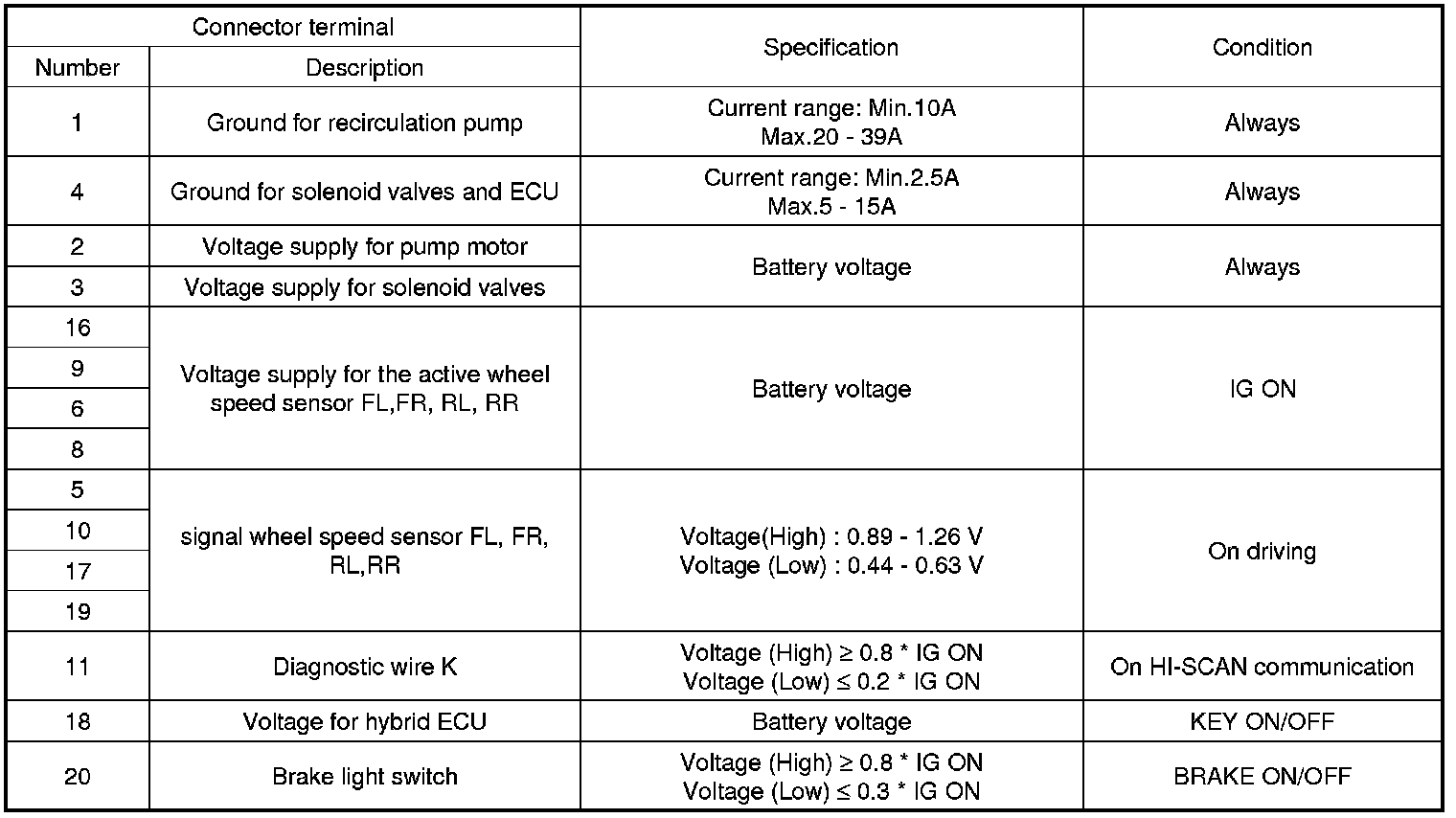

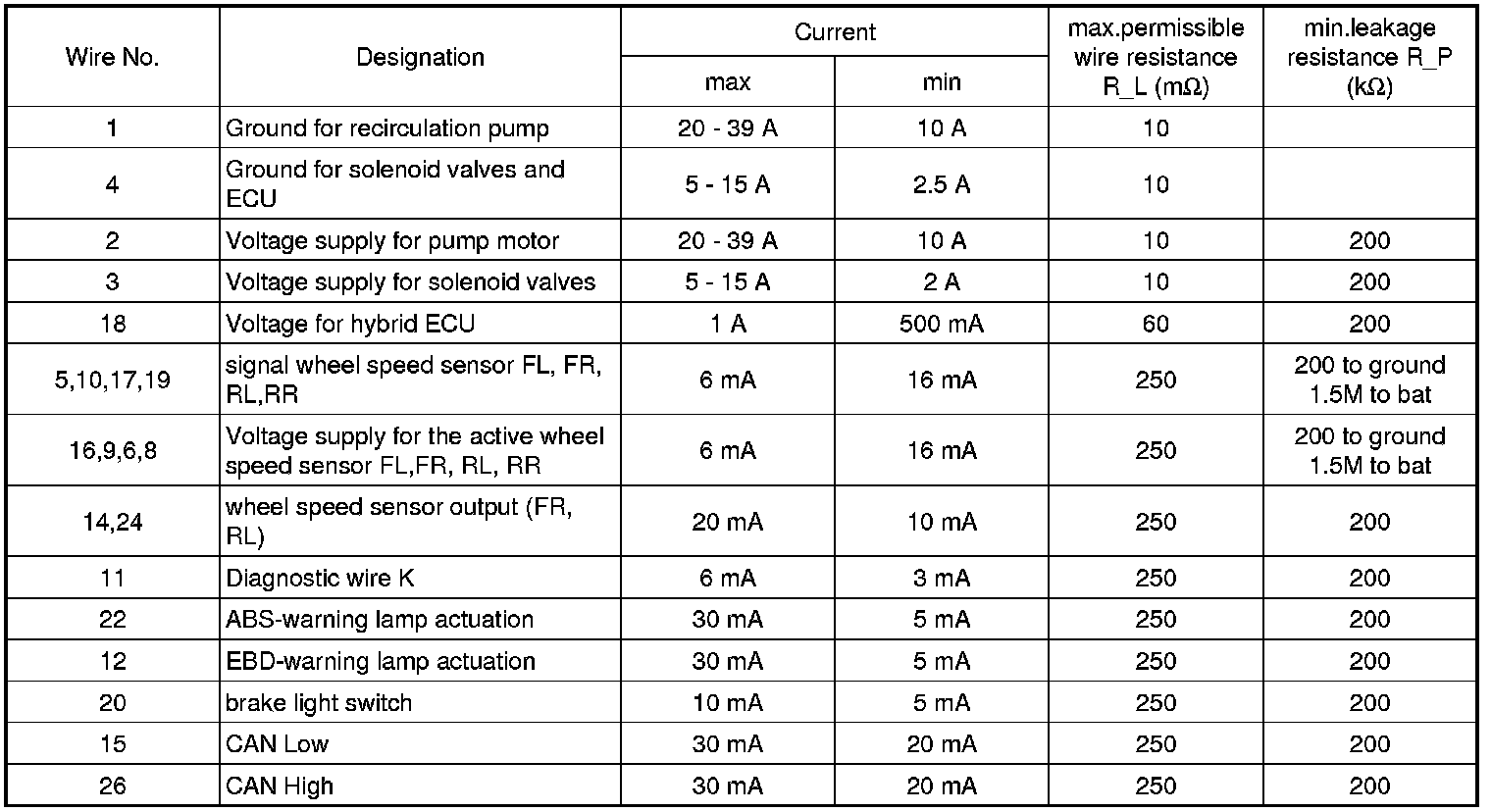

ECU CONNECTOR INPUT/OUTPUT(ABS)

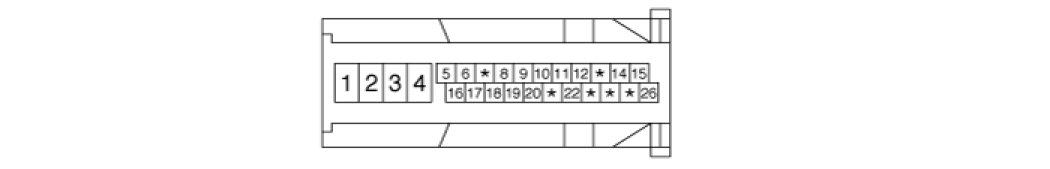

ABS HECU CONNECTOR





SENSOR OUTPUT ON SCAN TOOL(ABS)
