Rear Power MOSFET










REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the luggage side trim

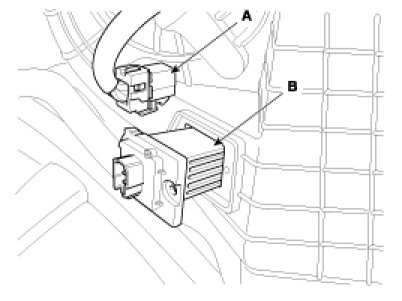

3. Disconnect the power MOSFET connector (A).
4. Remove the power MOSFET (B) after loosening the mounting screws.
