Power Supply Circuit Inspection

  1. Check open in power circuit
    1. Ignition "ON" & engine "OFF".
    2. Measure the resistance between fog lamp power circuit of FAM (BCM-FE-3)and fog lamp (E19-2).

      Specification: 0 Ω

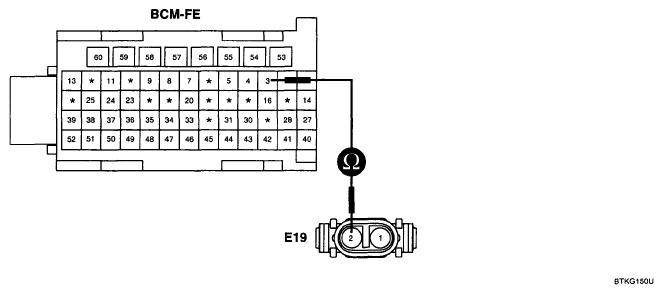

      Fig 1: Measuring Resistance Between Fog Lamp Power Circuit Of FAM (BCM-FE-3)And Fog Lamp (E19-2)
      G04884839Courtesy of KIA MOTORS AMERICA, INC.
    3. Is the measured resistance within the specification?

      YES

      Go to "GROUND CIRCUIT INSPECTION ".

      NO

      Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
