System Specifications

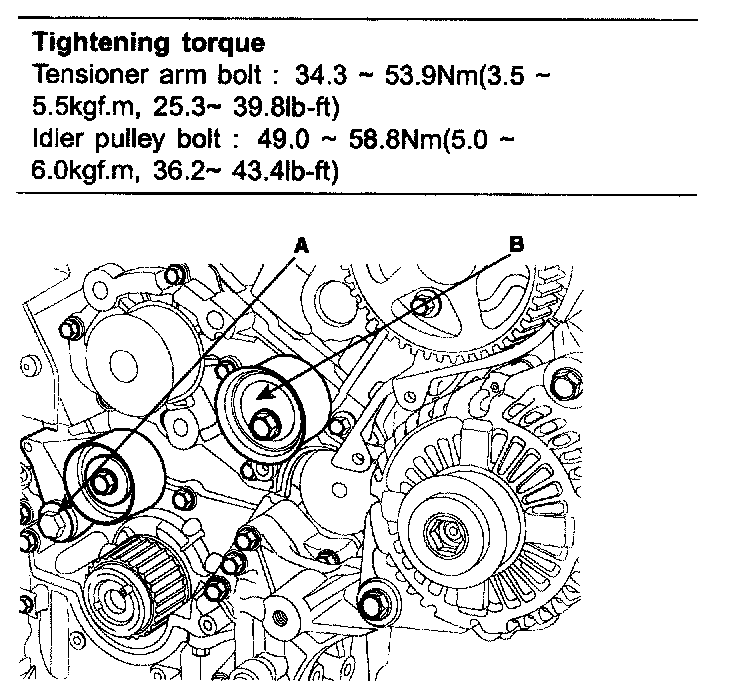

Tensioner arm (A)

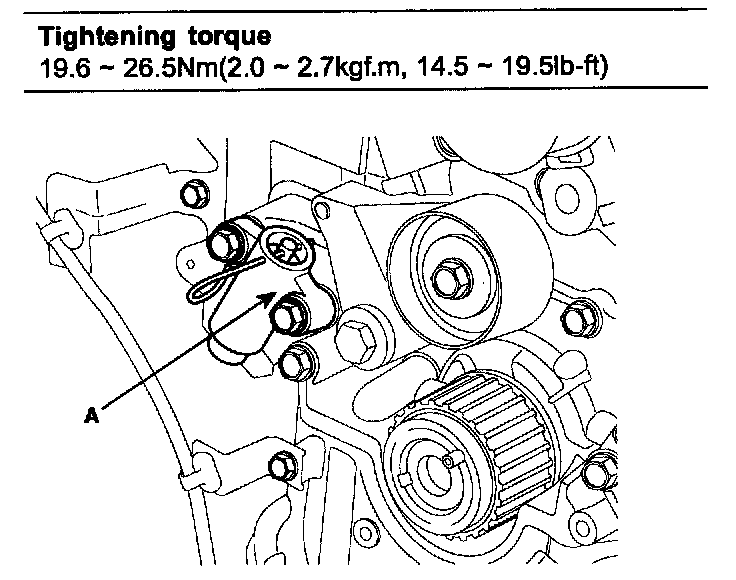

Auto tensioner (A)

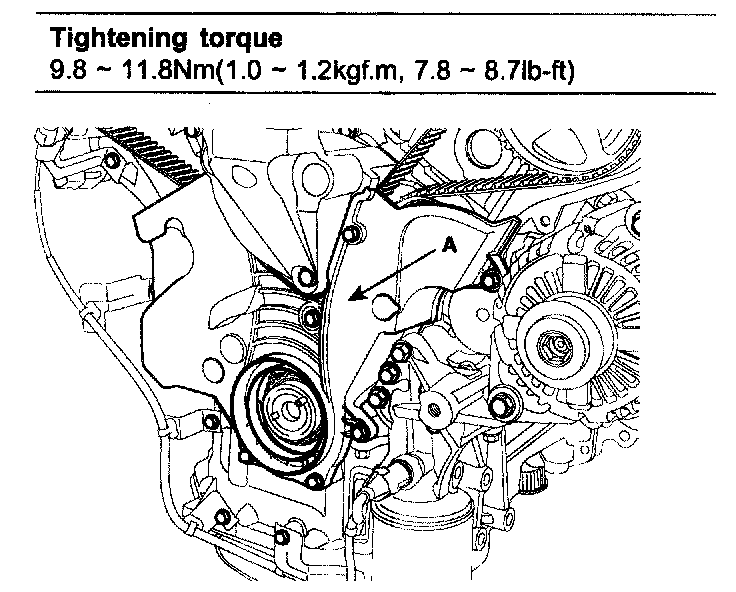

Timing belt lower cover (A)

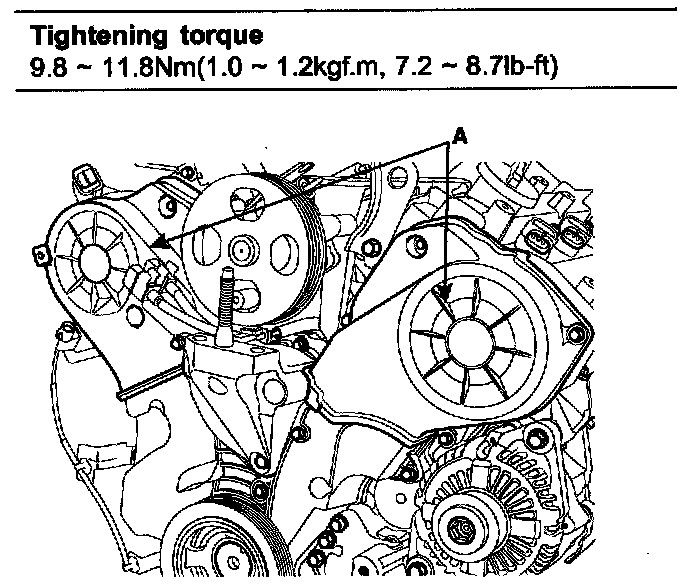

Timing belt upper cover (A)





Crankshaft pulley bolt 166.7 - 176.5 Nm (17.0 - 18.0 kgf-m, 123.0 - 130.2 lb-ft)
