System Specifications
Timing Chain Tensioner Arm (B)
Timing Chain Auto Tensioner (A)
Tightening torque 9.8 - 11.76 Nm (1.0 1.2 kgf-m, 7.23 - 8.67 lb-ft)
Crankshaft pulley bolt 166.6 - 176.4 Nm (17 - 18 kgf-m, 122.9 - 130.13 lb-ft)

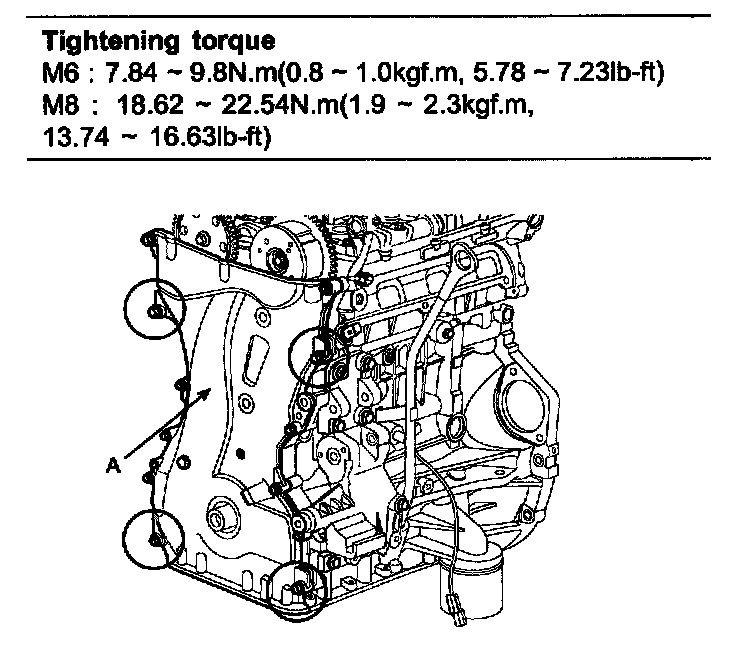

Timing Chain Cover
Timing Chain Auto Tensioner (A)
Tightening torque 9.8 - 11.76 Nm (1.0 1.2 kgf-m, 7.23 - 8.67 lb-ft)
Crankshaft pulley bolt 166.6 - 176.4 Nm (17 - 18 kgf-m, 122.9 - 130.13 lb-ft)
Timing Chain Cover
