D 2ND Gear

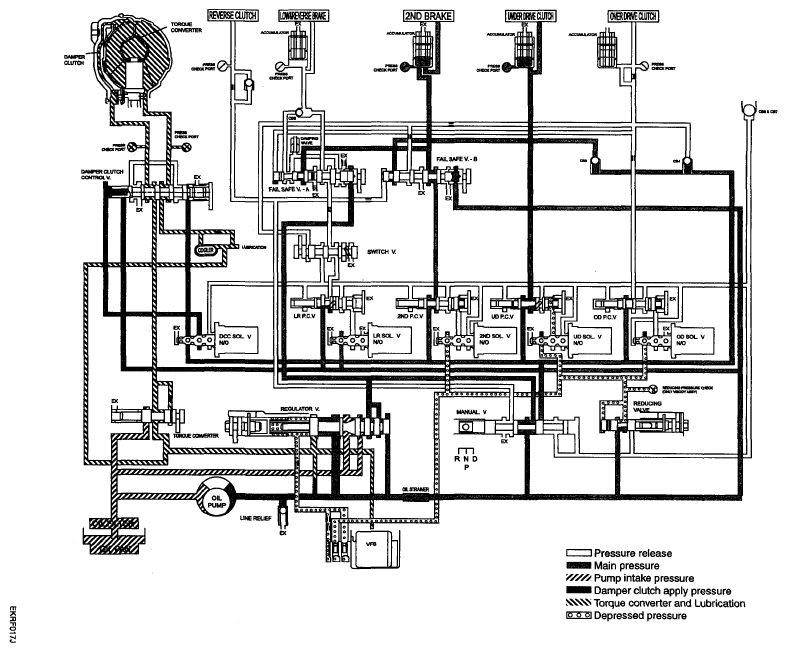

Fig 1: Hydraulic Pressure Diagram - D 2nd Gear
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
