Monitor SCANTOOL Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "OD SOL. VALVE" parameter on the scantool.
  4. Shift gear position 2nd to 3rd.

    Specification : 2nd gear → 0.0%, 3rd gear → 100%

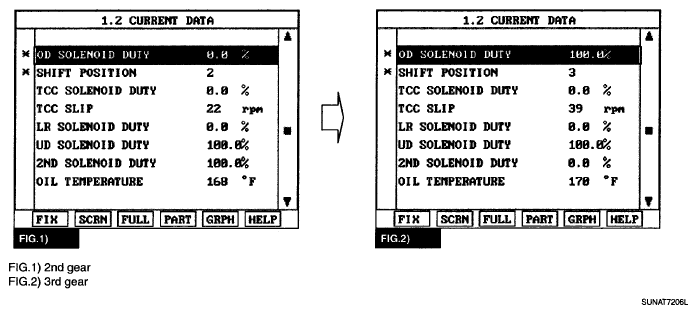

    Fig 1: Scantool Display - Solenoid Duty
    G05186421Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "OD SOLENOID DUTY" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
