Monitor SCANTOOL Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "2nd SOL. VALVE" parameter on the scantool.
  4. Shift gear position 1st to 2nd.

    Specification: 1st gear → 0.0%, 2nd gear → 100%

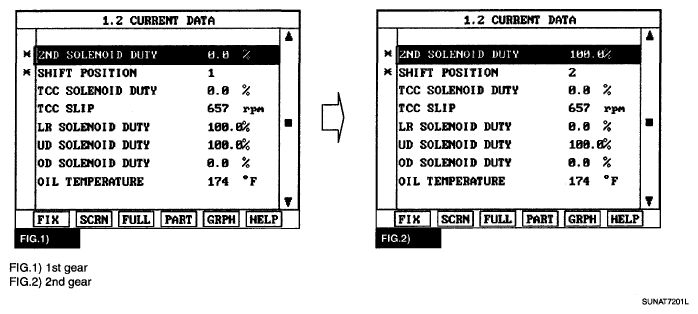

    Fig 1: Scantool Display - Solenoid Duty
    G05186416Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "2nd SOLENOID DUTY" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
