Power Steering Oil Pump: Installation

Install the power steering pump and tighten the mounting bolts.
Tightening torque N.m (kgf.m, lb-ft):

17-26 (1.7-2.6, 12-19)

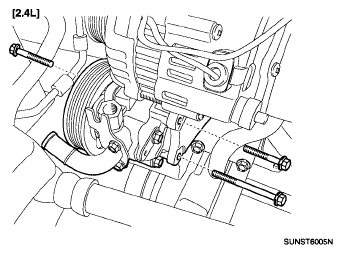

Fig 1: Identifying Power Steering Pump Bolts (2.4L)
Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque N.m (kgf.m, lb-ft):

35-50 (3.5-5.0, 25-36)

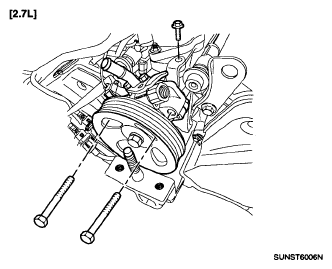

Fig 2: Identifying Power Steering Pump Bolts (2.7L)
Courtesy of KIA MOTORS AMERICA, INC.
Connect the suction hose (B) with suction pipe.
Connect the pressure tube (A) to power steering pump by tightening the eye bolt.
Tightening torque N.m (kgf.m, lb-ft):

55-65 (5.5-6.5, 36-47)

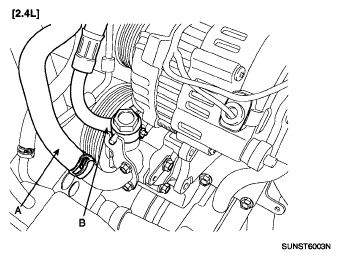

Fig 3: Identifying Pressure Tube And Suction Hose (2.4L)
Courtesy of KIA MOTORS AMERICA, INC.

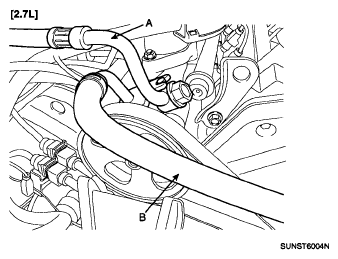

Fig 4: Identifying Pressure Tube And Suction Hose (2.7L)
Courtesy of KIA MOTORS AMERICA, INC.
Install the drive belt.
Add power steering fluid to reservoir.
Bleed the power steering system. (Refer to AIR BLEEDING )
Check power steering pump relief pressure. (Refer to OIL PUMP PRESSURE TEST (OIL PUMP RELIEF PRESSURE) )
