Chart 1

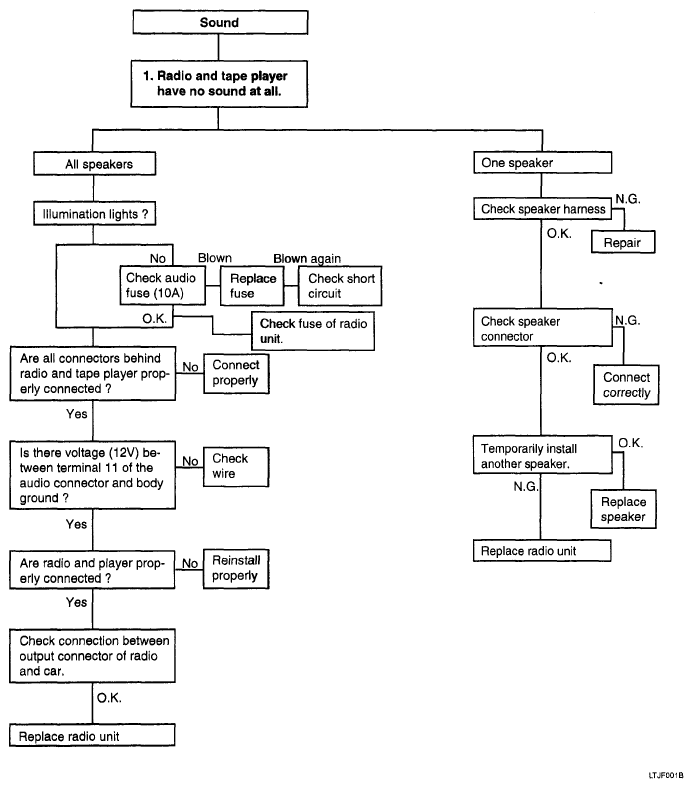

Fig 1: Problem Occur Areas Flow Chart 1 (1 Of 2)
G04884519Courtesy of KIA MOTORS AMERICA, INC.

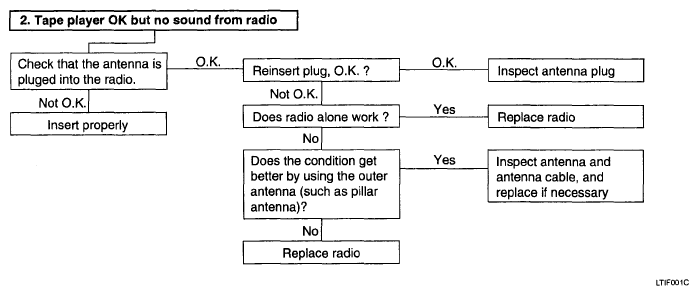

Fig 2: Problem Occur Areas Flow Chart 1 (2 Of 2)
G04806280Courtesy of KIA MOTORS AMERICA, INC.
