Front Hub / Knuckle: Components

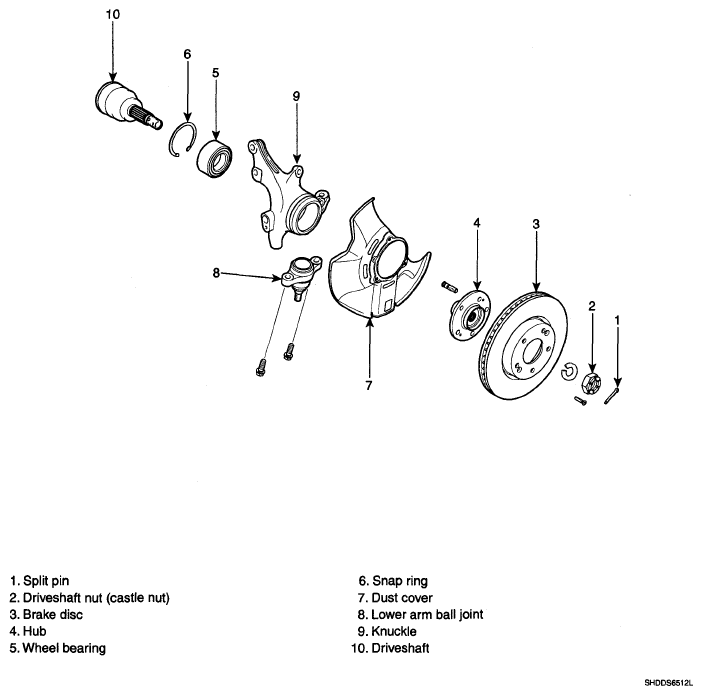

Fig 1: Exploded View Of Front Hub / Knuckle Components
G05186809Courtesy of KIA MOTORS AMERICA, INC.
