Standard Flow Of Diagnostic Troubleshooting

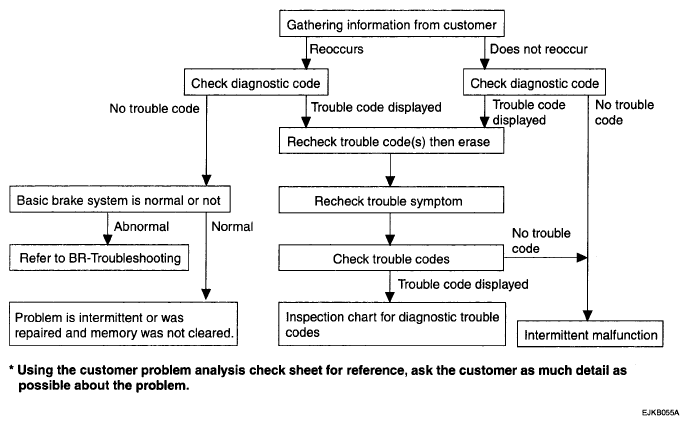

Fig 1: Diagnostic Work Flow Chart
G04805894Courtesy of KIA MOTORS AMERICA, INC.
