Rear Door Window Regulator: Service and Repair

REPLACEMENT

DOOR REGULATOR REPLACEMENT
1. Remove the door trim.
2. Remove the door trim seal.
3. Remove the window glass.

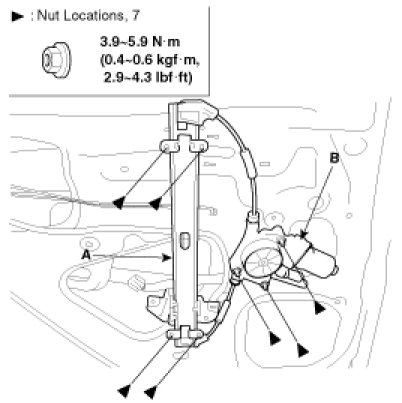

4. After disconnecting window motor connector(B), loosen the door regulator mounting nuts and window mounting nuts.Remove the door regulator(A).




5. Installation is the reverse of removal.

CAUTION:
- Make sure the connector is plugged in properly and each rod is connected securely.
- Make sure the door lock and open properly.
