Repair Procedures




REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.
3. Disconnect the connectors from the fresh and recirculation actuator, the blower motor and power mosfet.
4. Remove the cowl cross bar assembly.

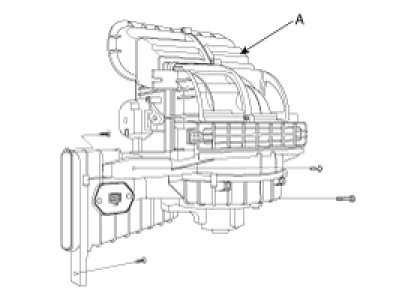

5. Remove the blower unit (A) from the heater unit after loosening a mounting bolt and 3 screws.





NOTE:
Make sure that there is no air leaking out of the blower and duct joints.

6. Install in reverse order of removal.
