Manual Transaxle: Components

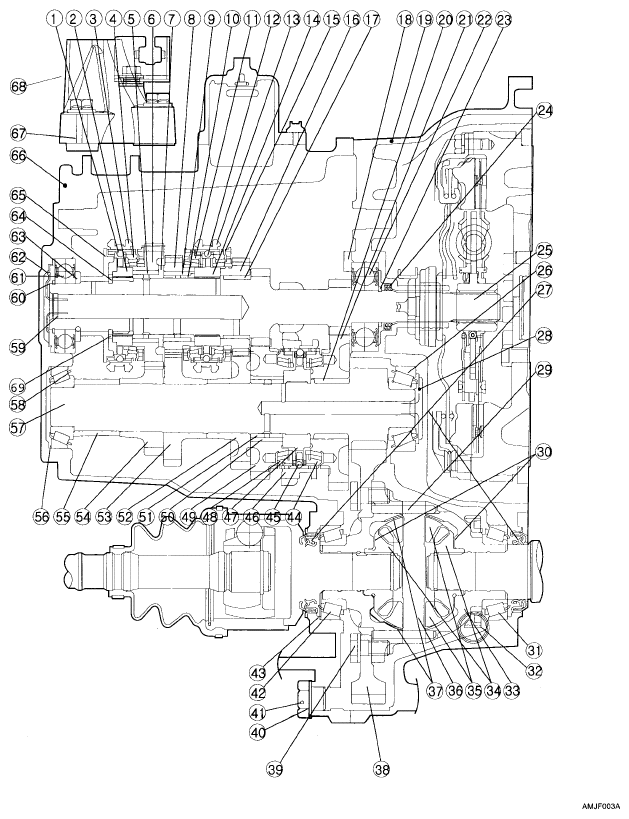

Fig 1: Manual Transaxle System Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

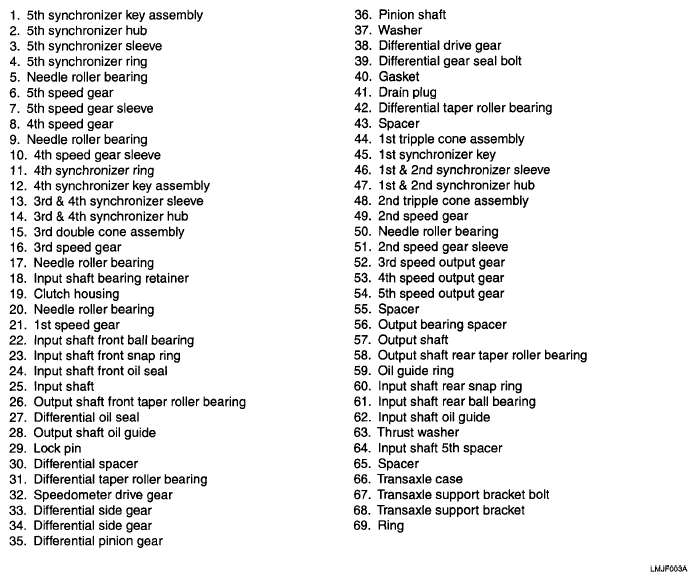

Fig 2: Manual Transaxle System Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

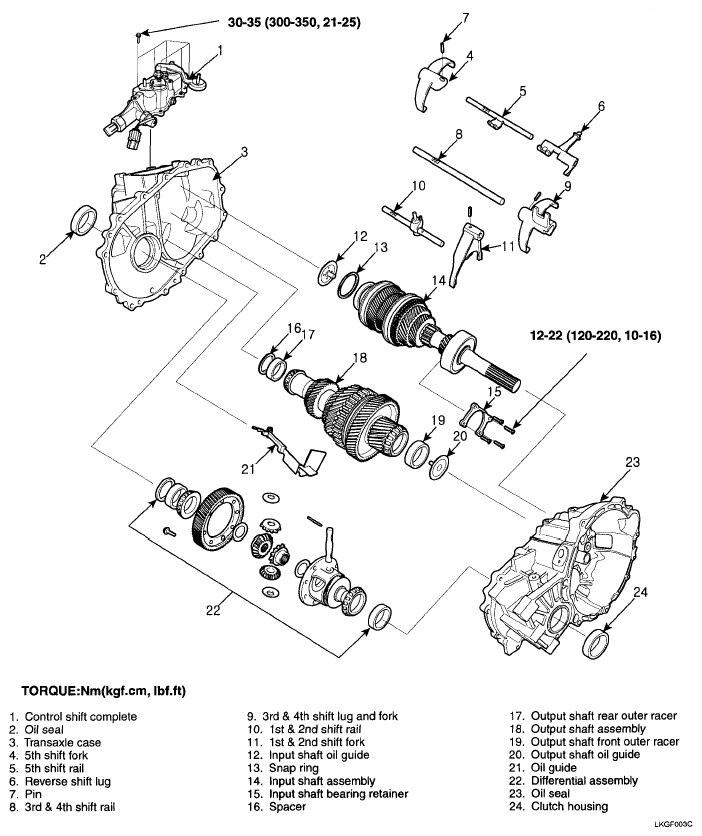

Fig 3: Manual Transaxle System Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
