Engine Control Module




POWERTRAIN CONTROL MODULE (PCM)

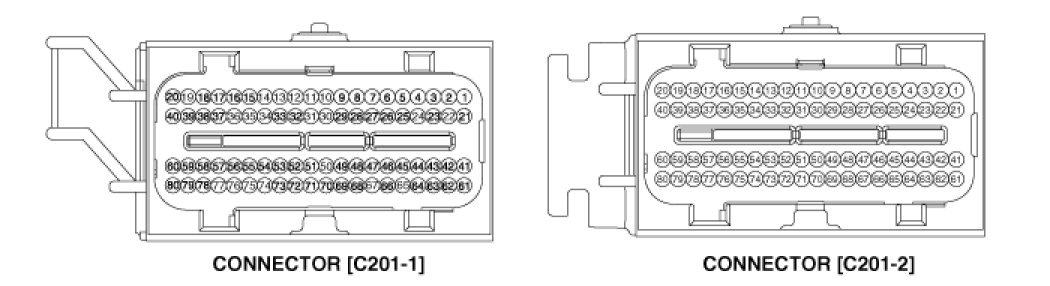

1. HARNESS CONNECTOR

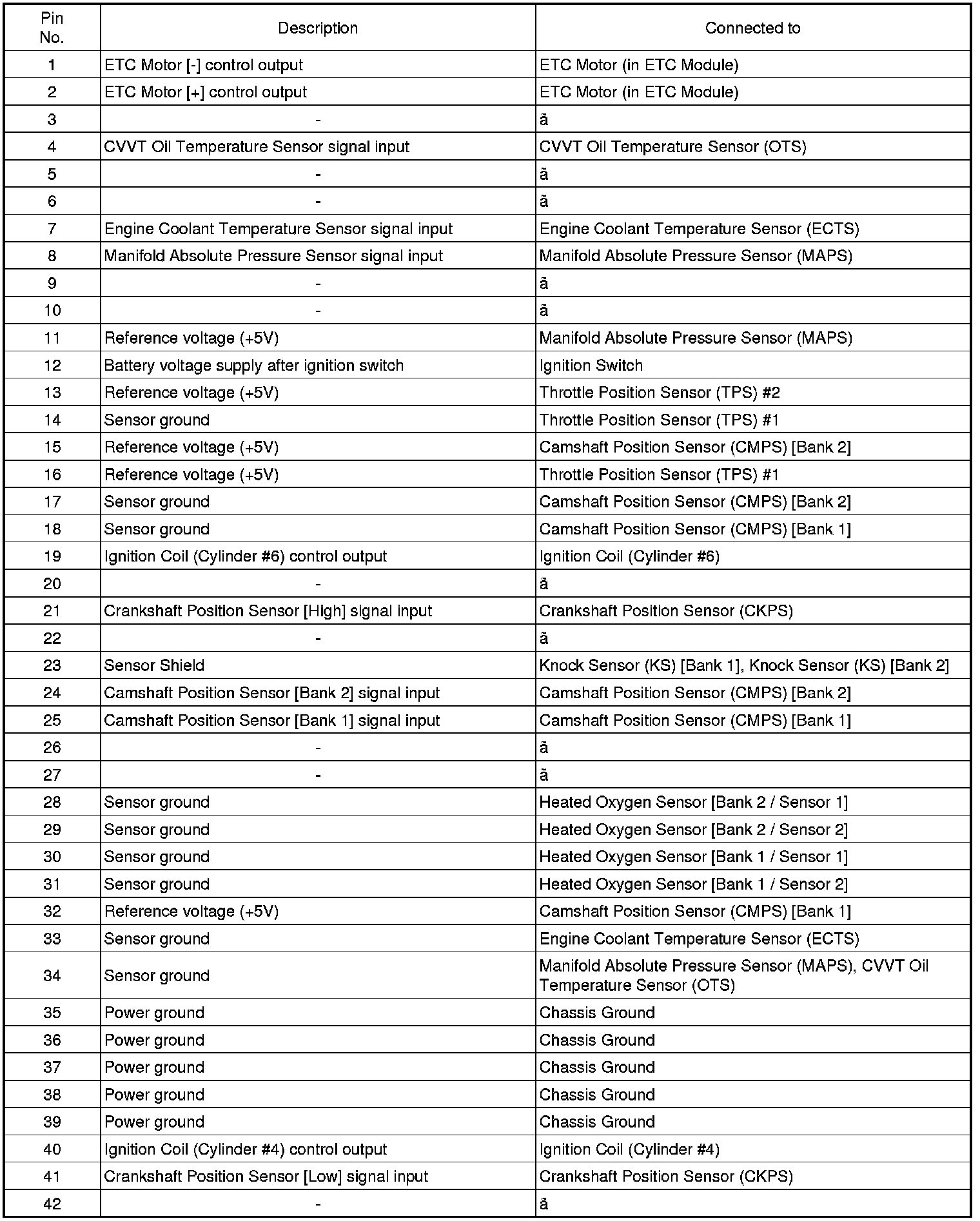

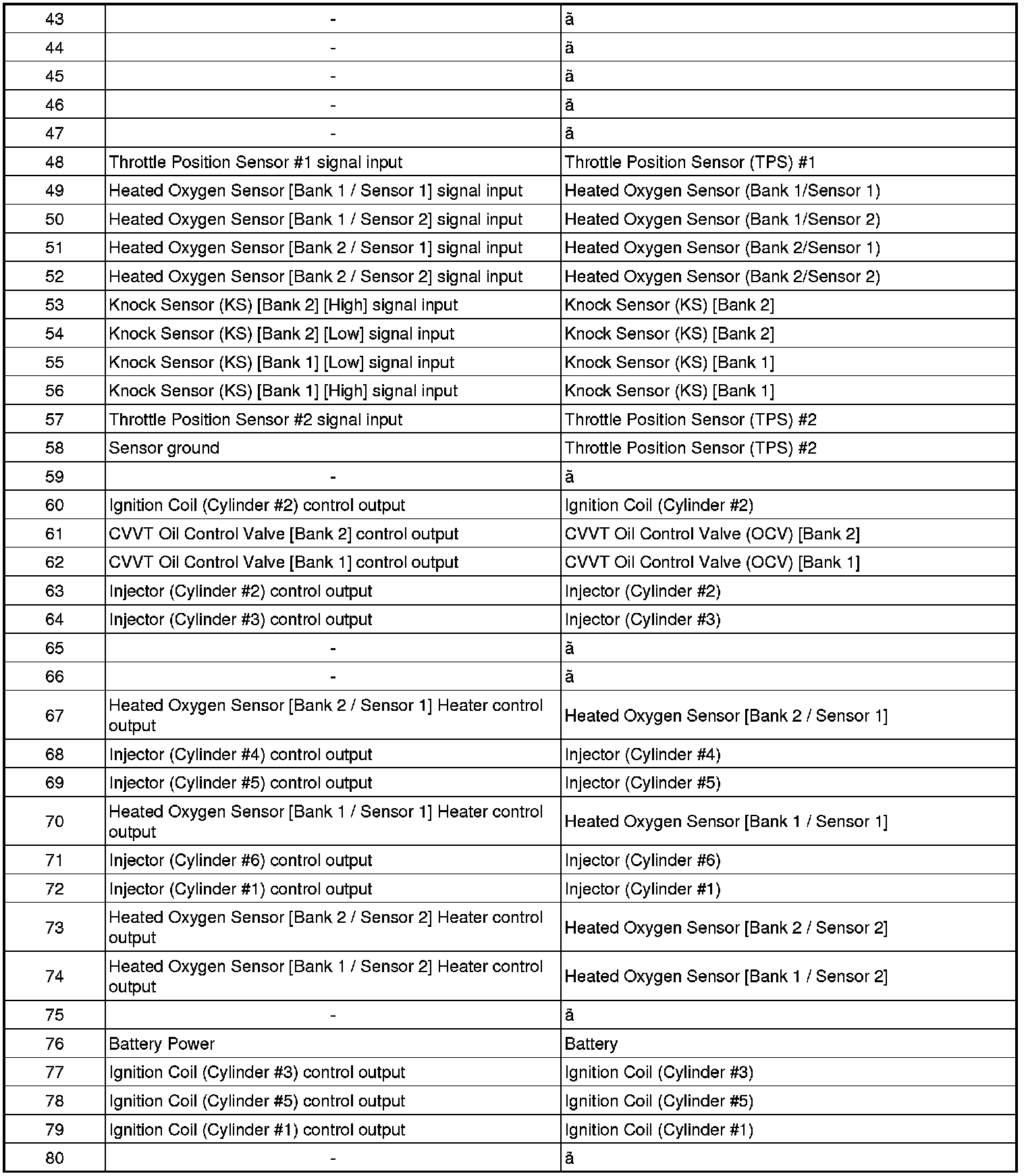

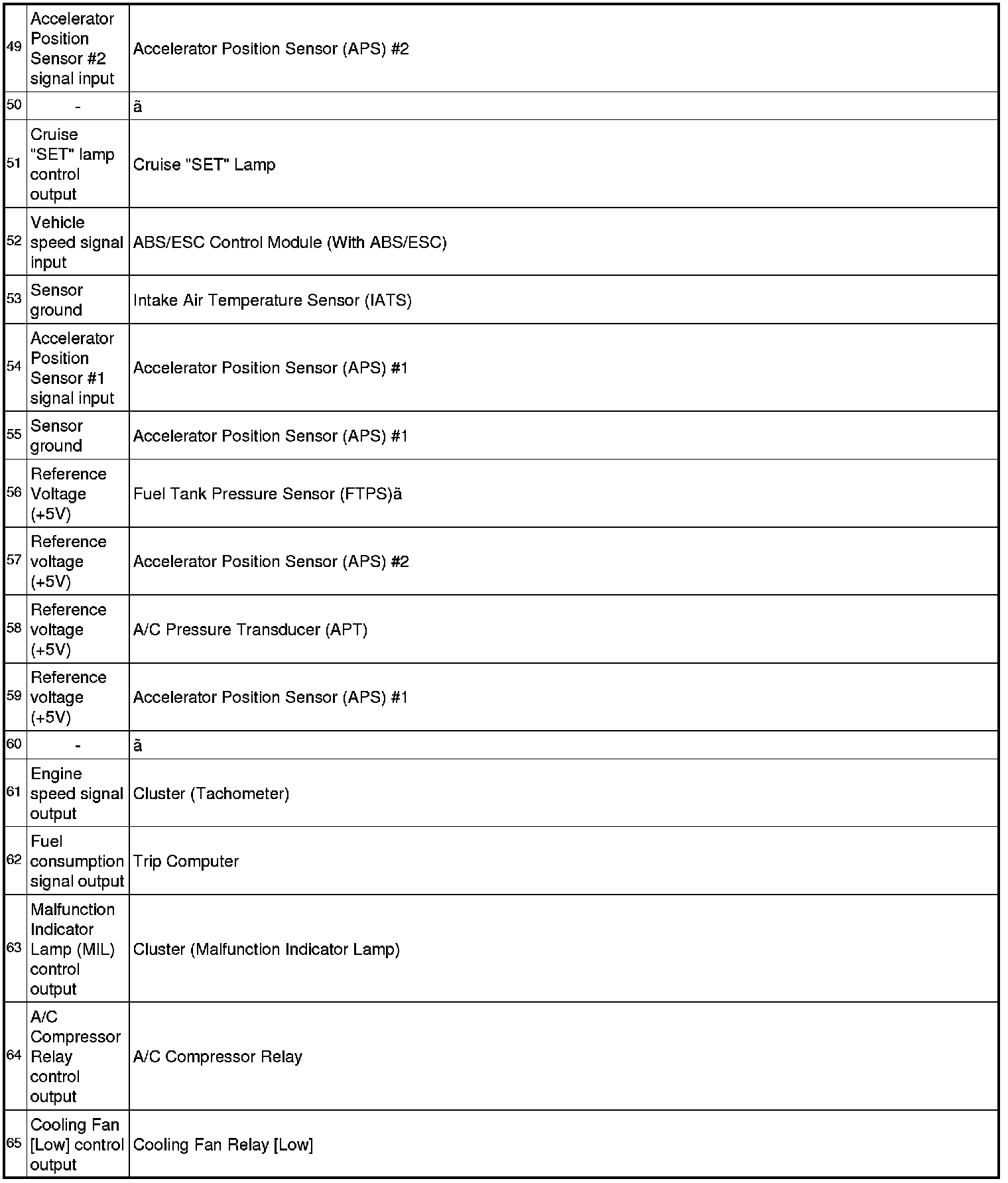

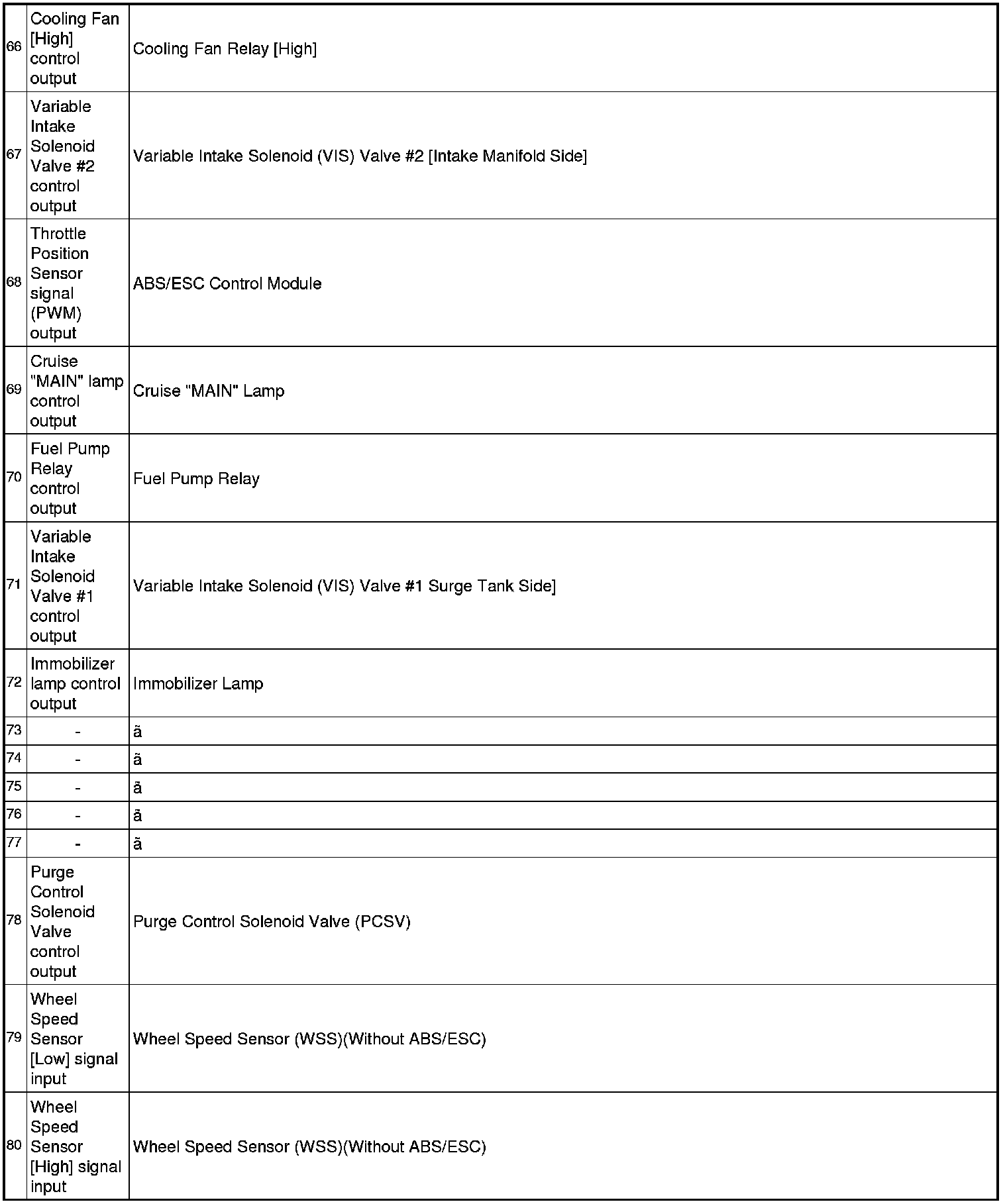

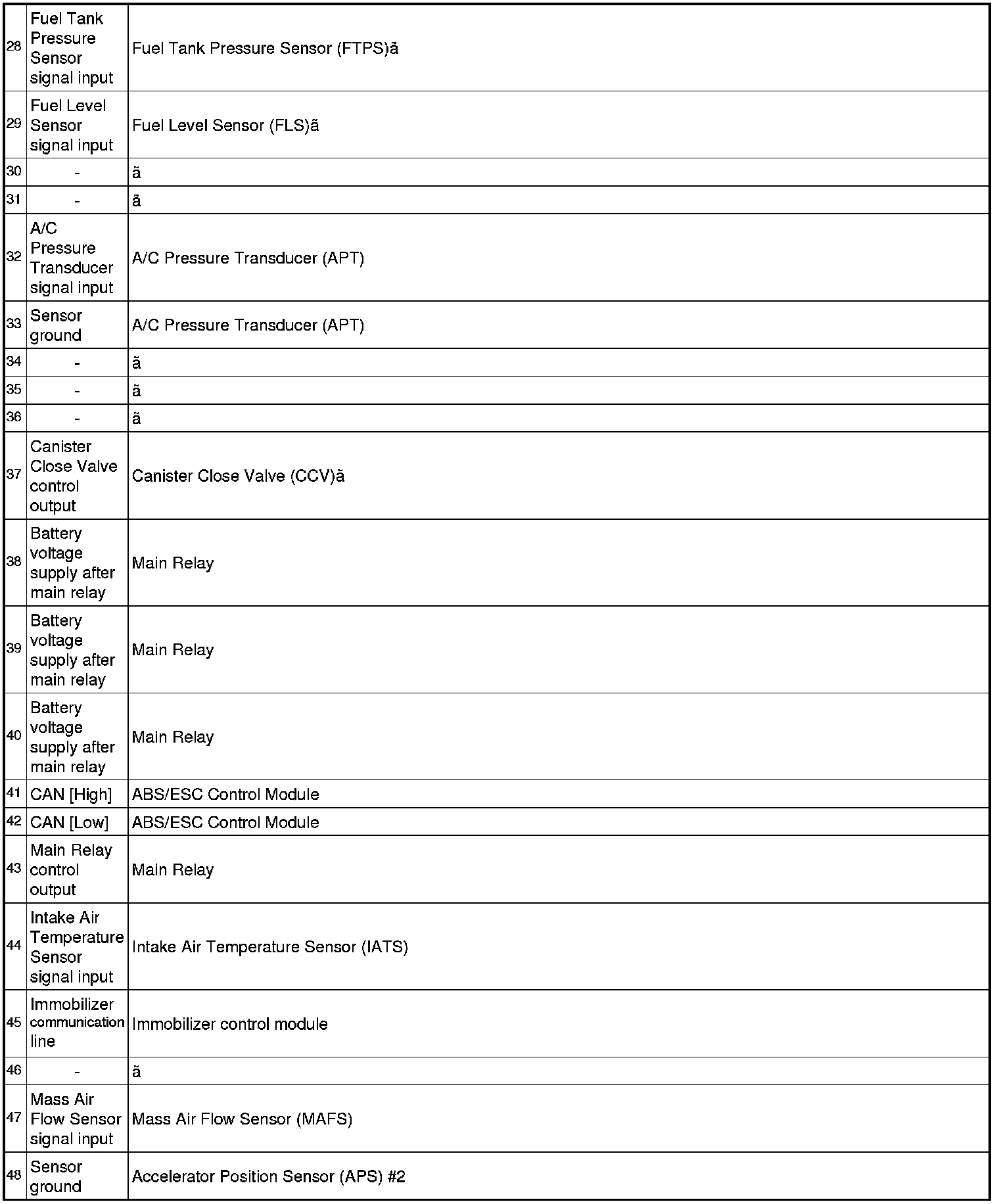

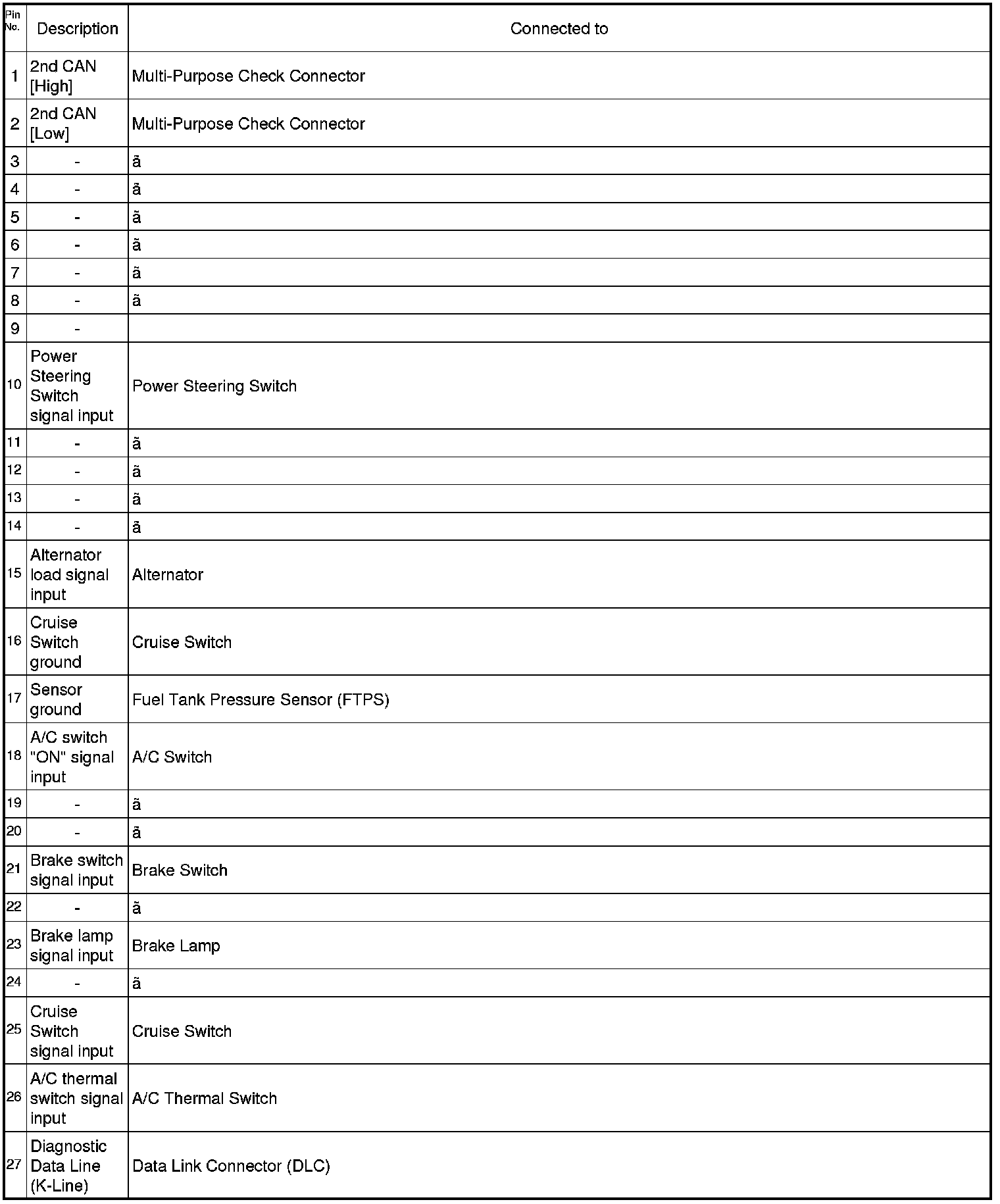

2. TERMINAL FUNCTION
CONNECTOR [C201-1]

















CONNECTOR [C201-2]

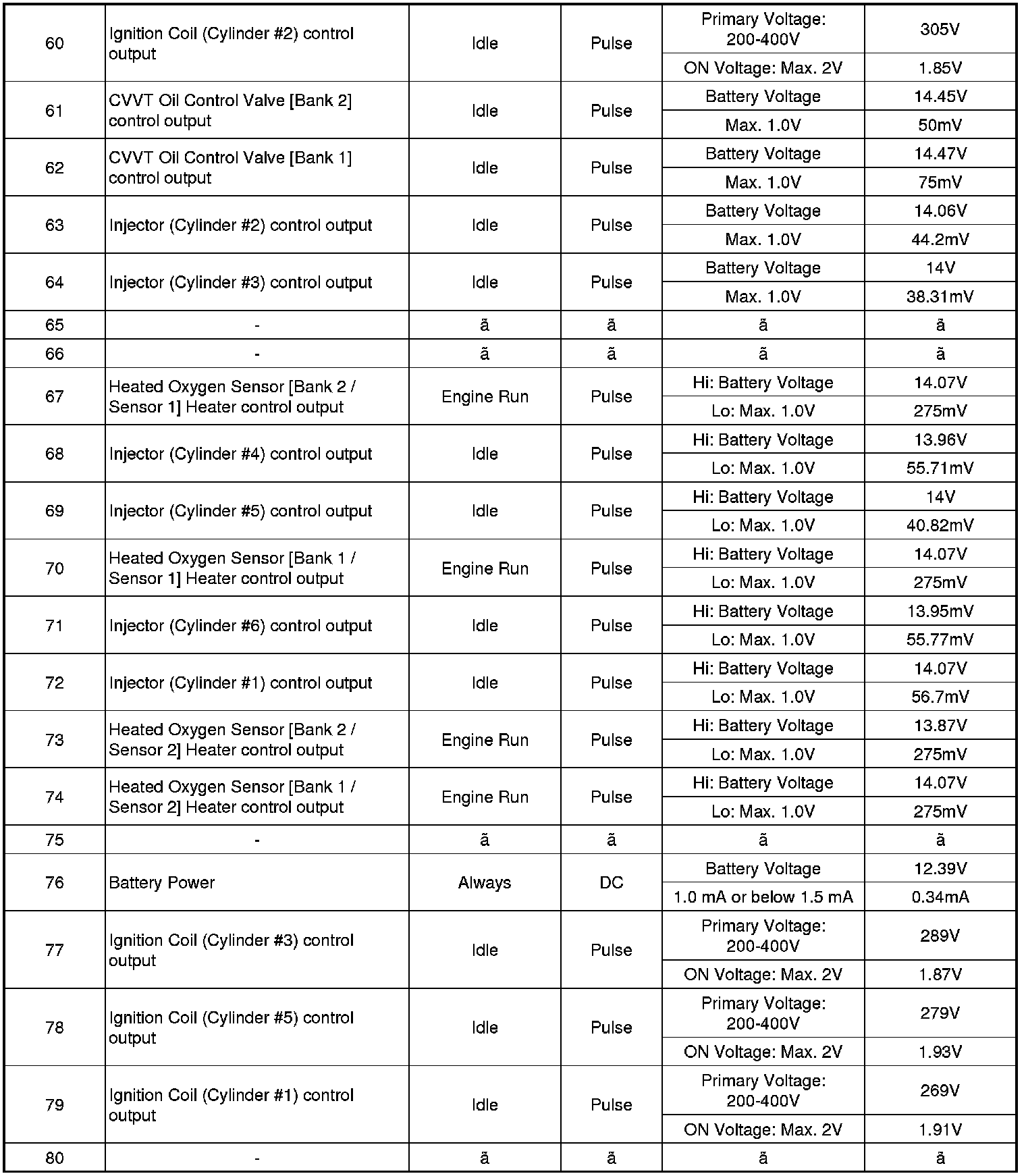

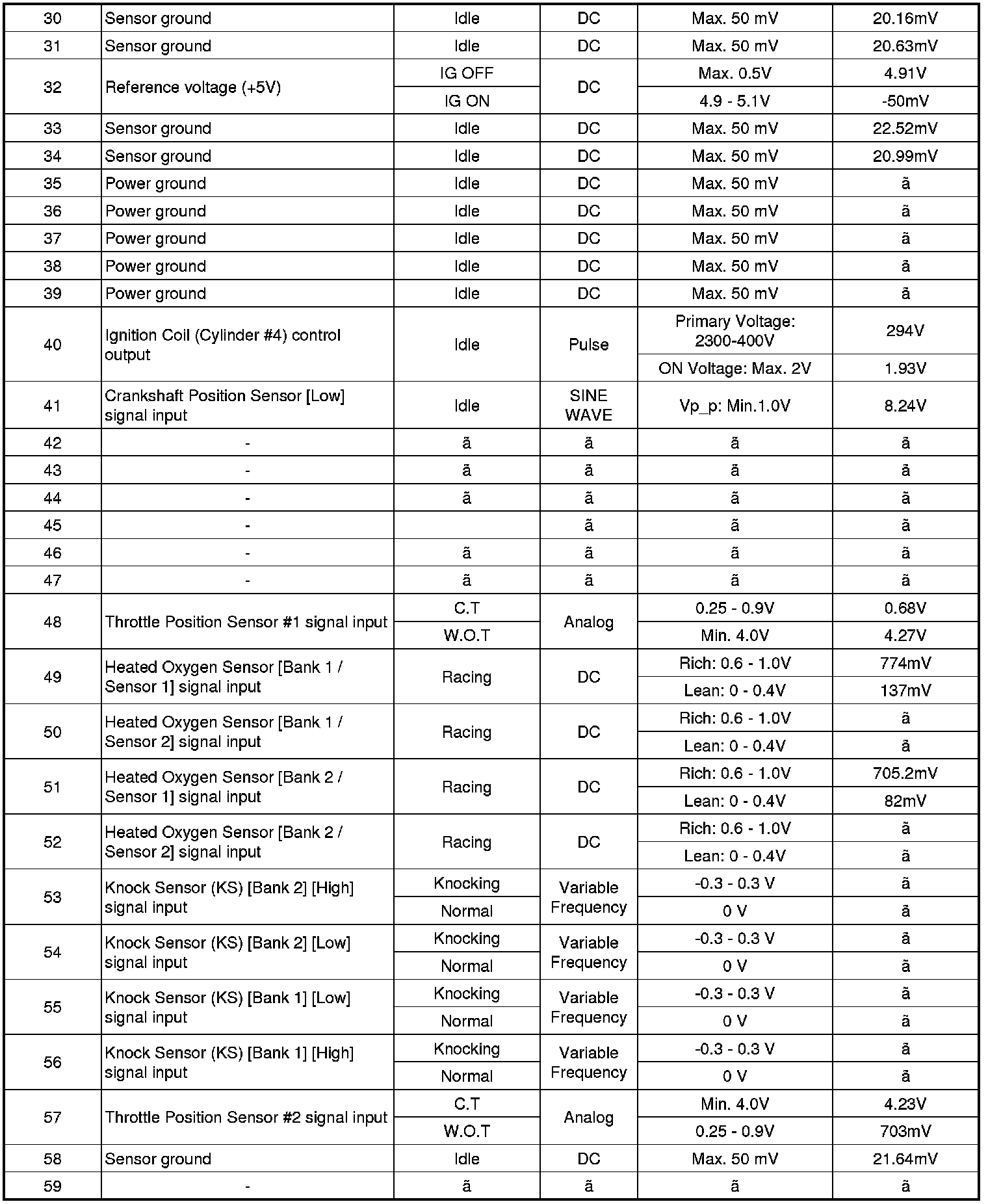

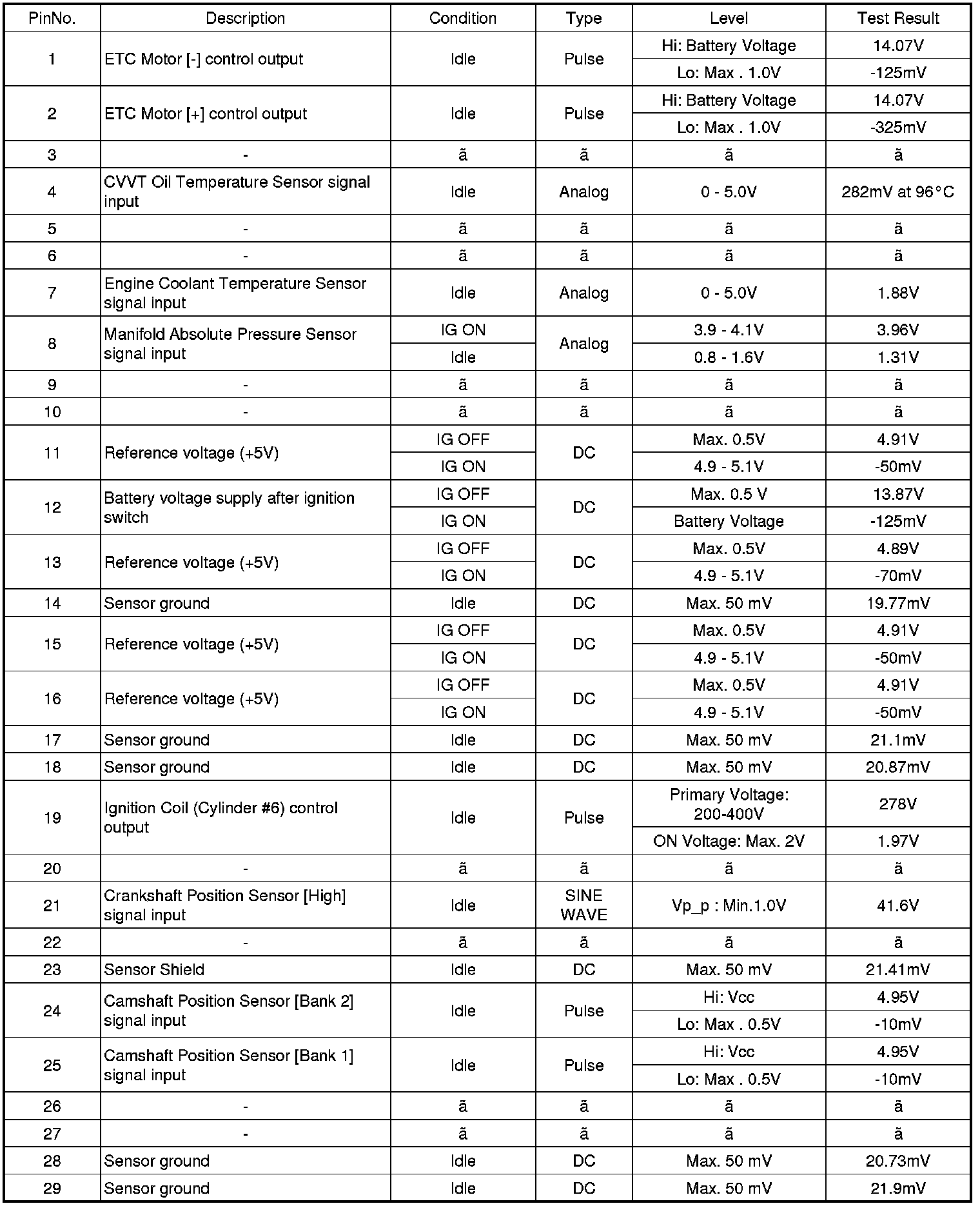

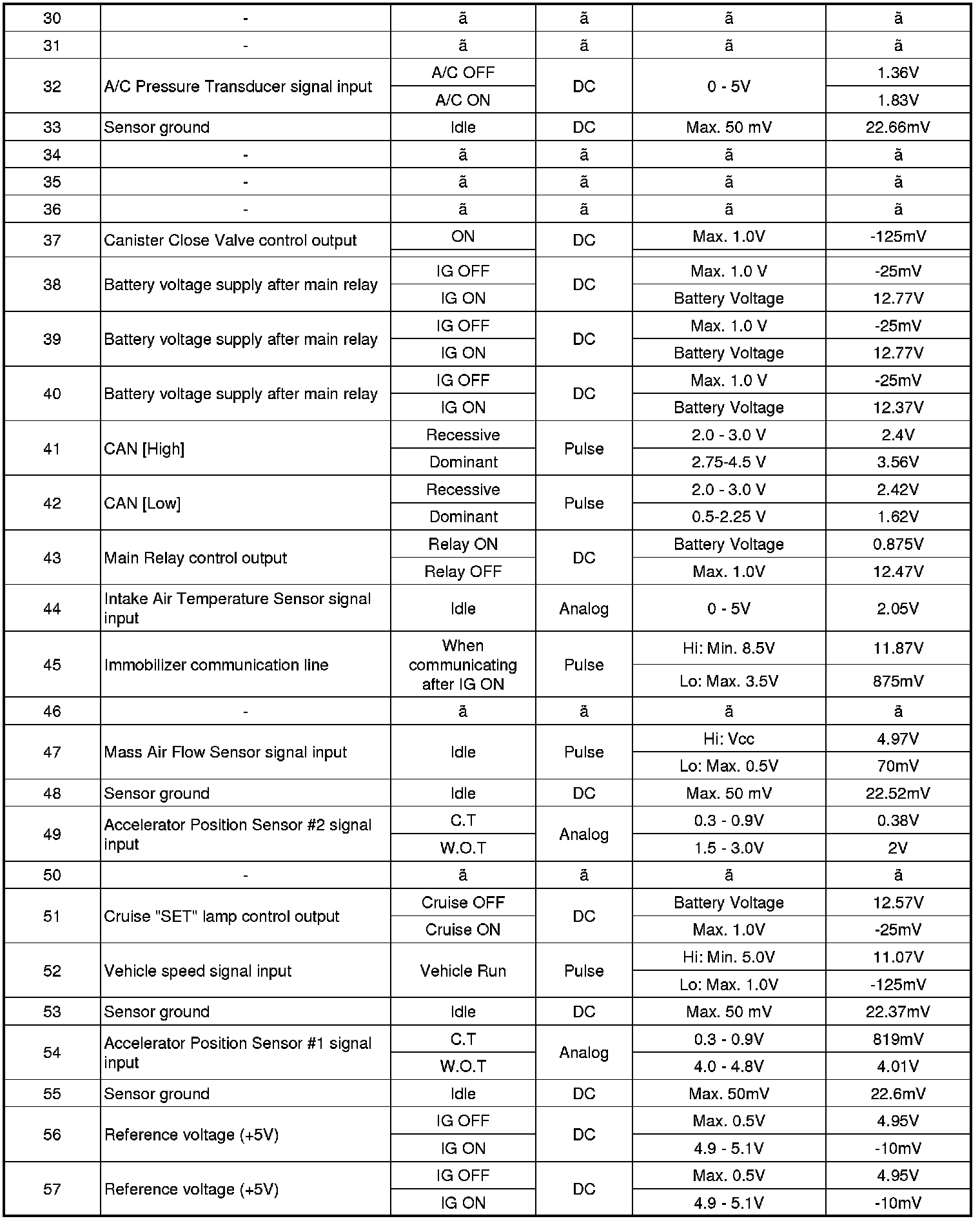

3. TERMINAL INPUT/OUTPUT SIGNAL
CONNECTOR [C201-1]

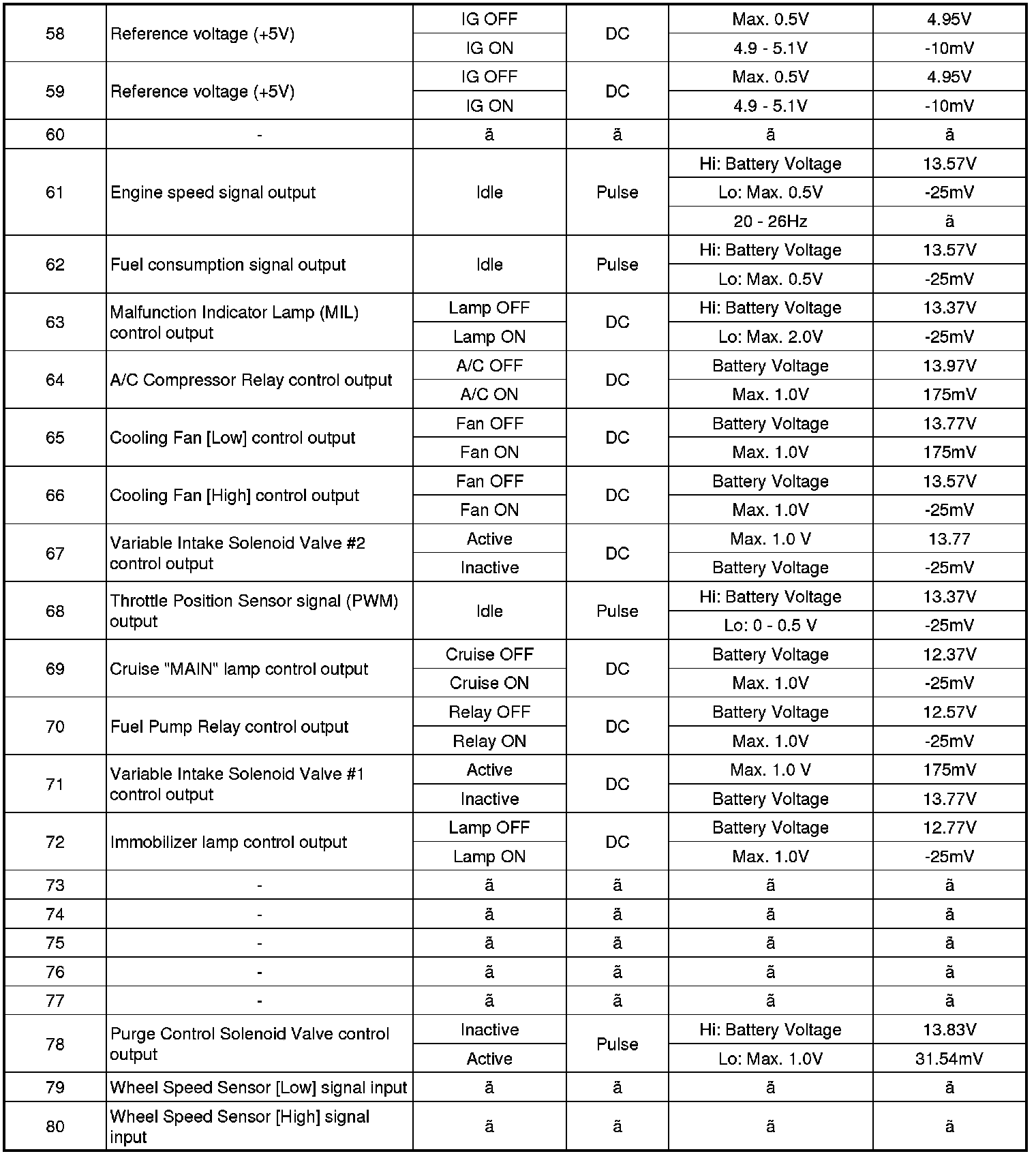

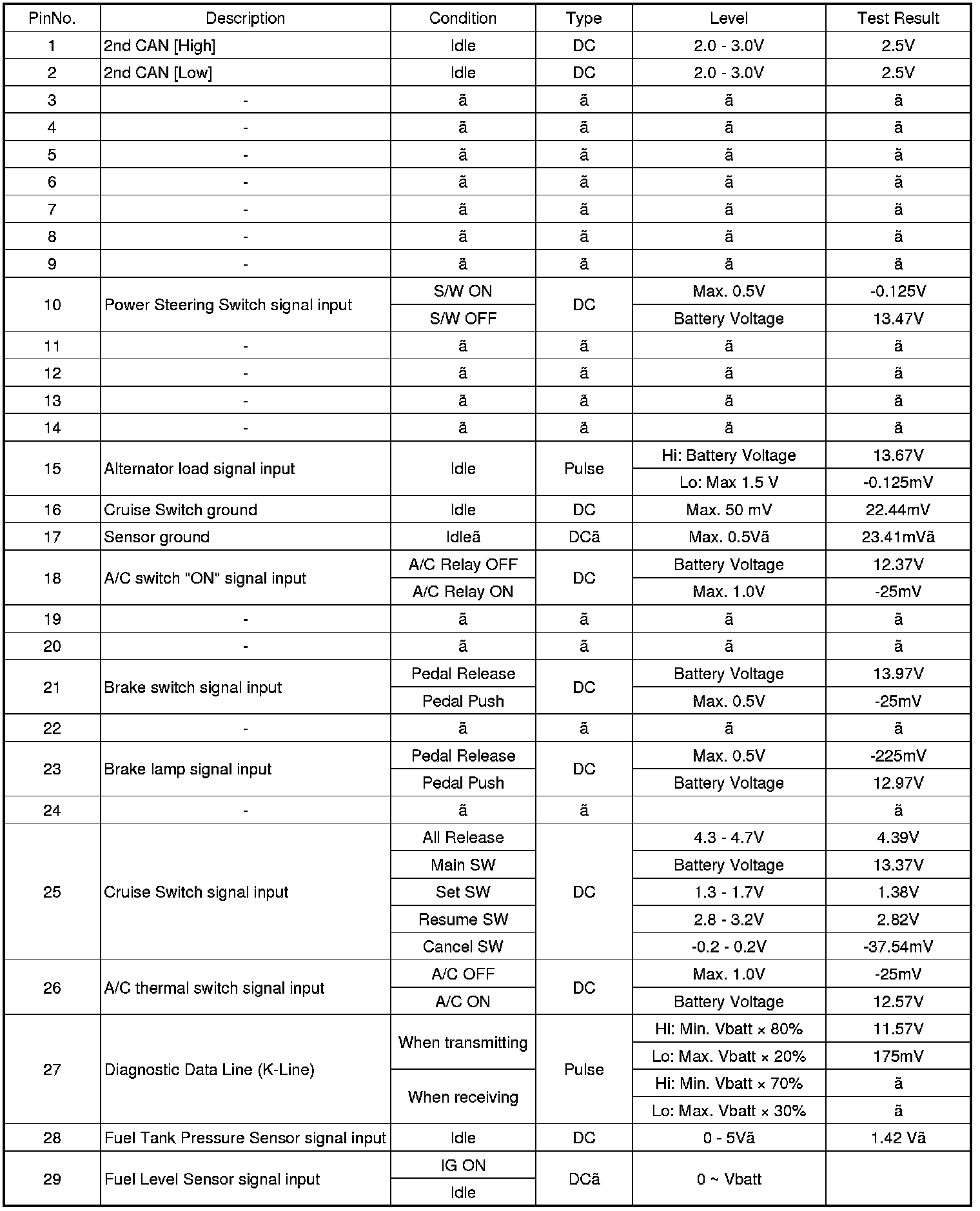

CONNECTOR [C201-2]
