Schematic Diagram

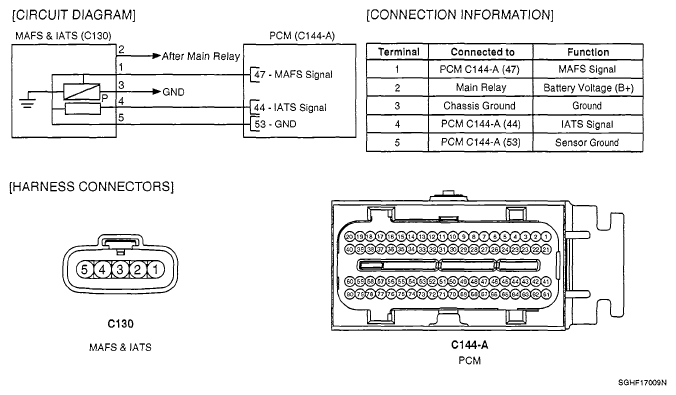

Fig 1: Mass Air Flow Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
