Schematic Diagram

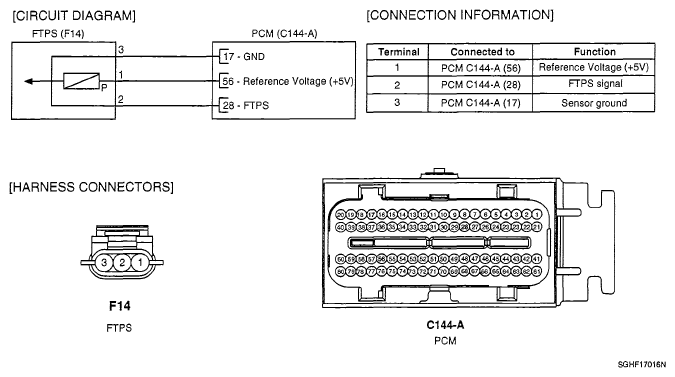

Fig 1: Fuel Tank Pressure Sensor (FTPS) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
