Battery Diagnostic Flow

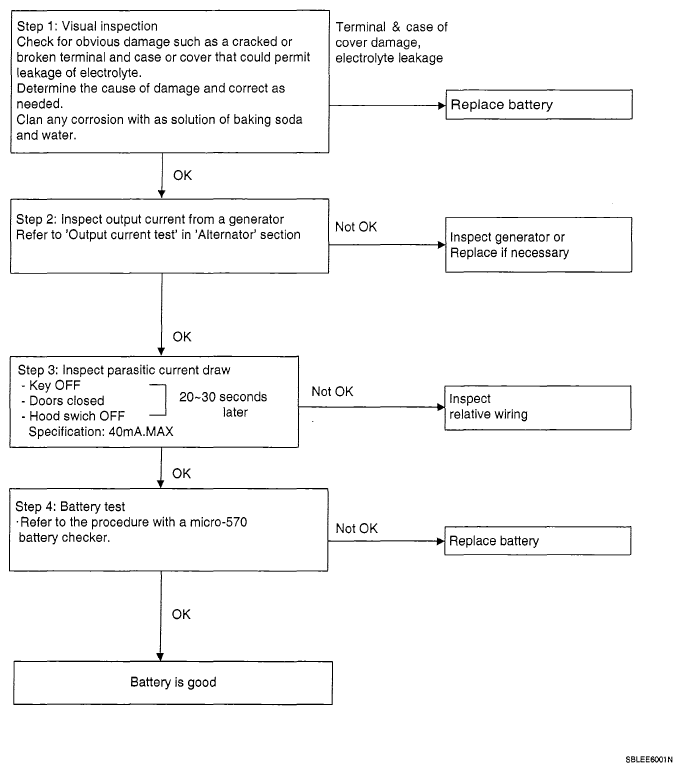

Fig 1: Battery Diagnostic Flow Chart
G05116263Courtesy of KIA MOTORS AMERICA, INC.
