Control Assembly, HVAC

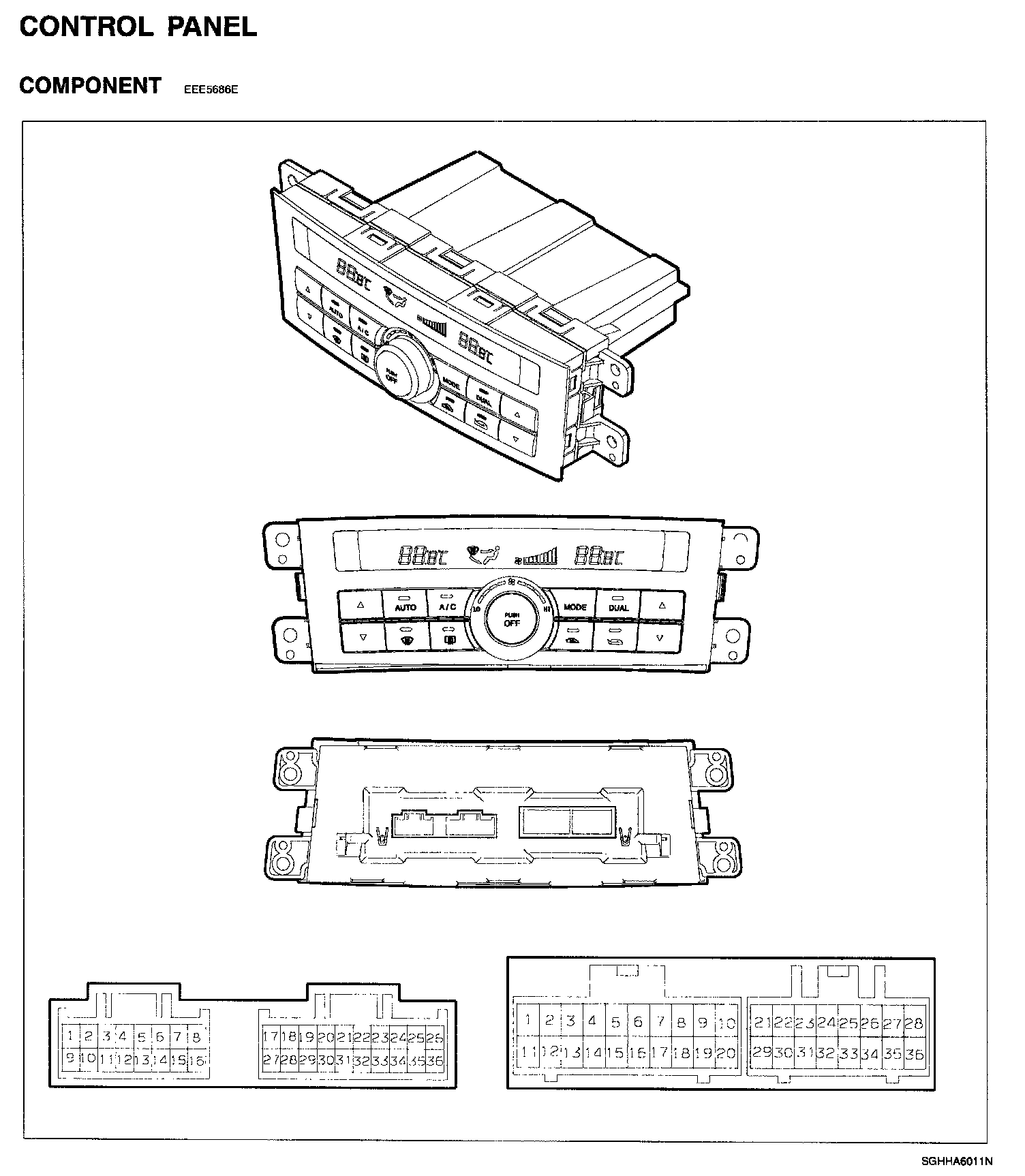

Blower And A/C Controls (Automatic) Control Panel - Components:

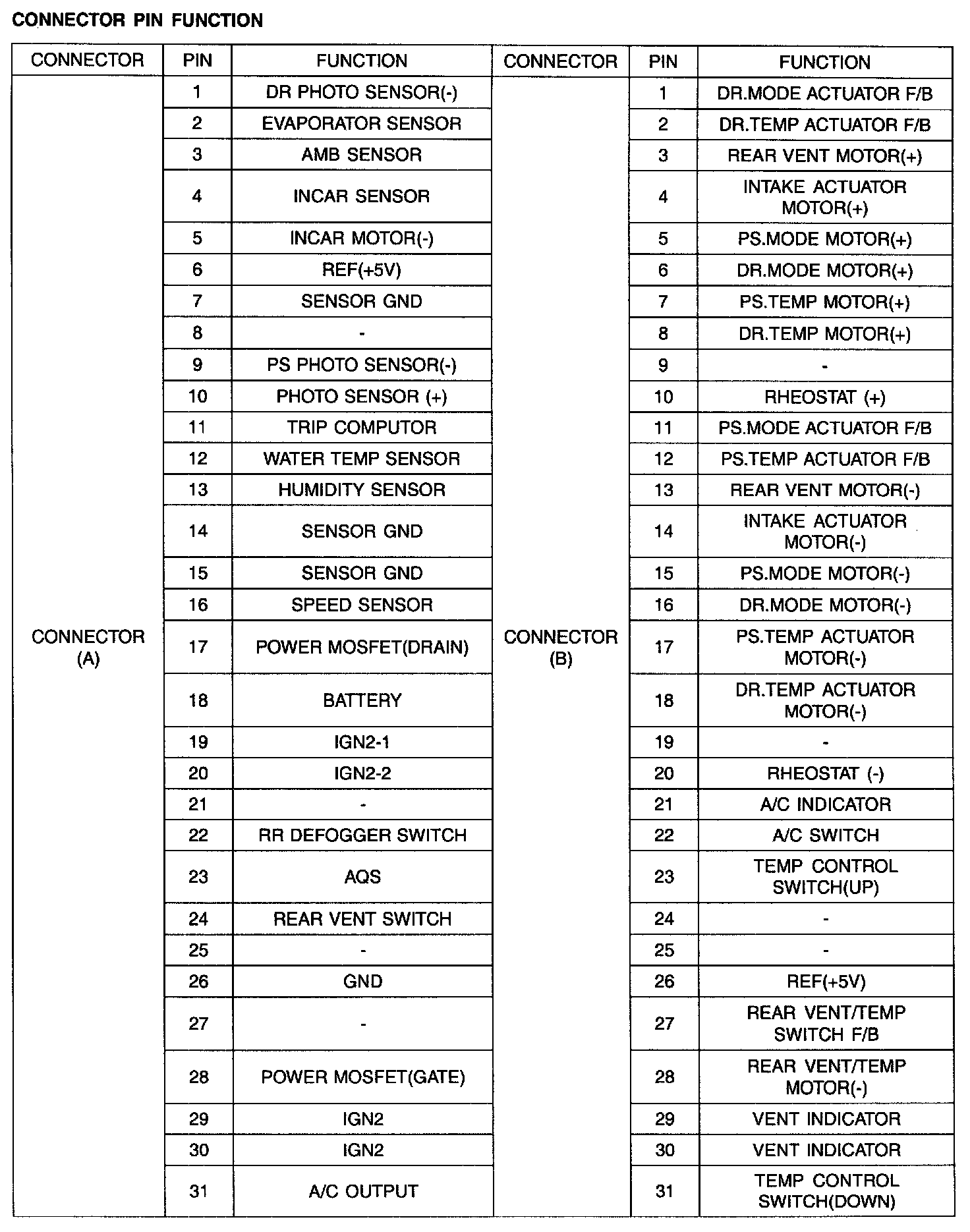

Connector Pin Function (Part 1):



Connector Pin Function (Part 2):
