Output Shaft: Reassembly

Install the needle bearing (A).

Fig 1: Identifying Needle Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Apply the MT oil to the needle bearing.
Install the 1st gear (A).

Fig 2: Identifying Gear
Courtesy of KIA MOTORS AMERICA, INC.
Install the 1st inner synchronizer ring (A).

Fig 3: Identifying Inner Synchronizer Ring
Courtesy of KIA MOTORS AMERICA, INC.
Install the 1st synchronizer cone (B).
Install the 1st outer synchronizer ring (C).
Install the 1st & 2nd synchronizer hub using press.
NOTE: When installing hub, make sure that the fingers of 1st synchronizer ring are seated correctly in the grooves of synchronizer hub.

Fig 4: Identifying Synchronizer Cone
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing hub, make sure the direction as shown in the picture.

Fig 5: Identifying Hub
Courtesy of KIA MOTORS AMERICA, INC.

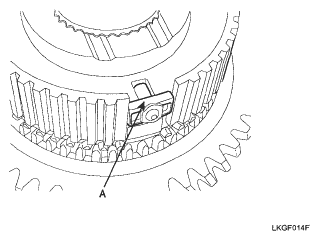

Install the synchronizer key (A).

Fig 6: Identifying Synchronizer Key
Courtesy of KIA MOTORS AMERICA, INC.
Install the 1st & 2nd sleeve (A).

Fig 7: Identifying 1st & 2nd Sleeve
Courtesy of KIA MOTORS AMERICA, INC.
Install the 2nd sleeve using press.

Fig 8: Identifying 2nd Sleeve
Courtesy of KIA MOTORS AMERICA, INC.
Install the 2nd outer synchronizer ring (A). (Trifle cone)

Fig 9: Identifying Outer Synchronizer Ring
Courtesy of KIA MOTORS AMERICA, INC.
Install the 2nd synchronizer cone (B).
Install the 2nd inner synchronizer ring (C).
Install the 2nd needle bearing (A).

Fig 10: Identifying 2nd Needle Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Install the 2nd gear (A).

Fig 11: Identifying Gear
Courtesy of KIA MOTORS AMERICA, INC.
Install the 3rd (A), 4th (B) and 5th (C) gear using press. (09432-21500)
NOTE: Heat the 3rd gear with electrical heater before using press.

Fig 12: Heating Gear With Electrical Heater
Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Identifying Gears And Press (09432-21500)
Courtesy of KIA MOTORS AMERICA, INC.
Install the spacer using press and special tool (09455-21100).
Install the rear taper roller bearing using press and special tool (09432-22000).
NOTE: Do not reuse the removed bearing.

Fig 14: Identifying Special Tool (09432-22000)
Courtesy of KIA MOTORS AMERICA, INC.
Install the opposite side taper roller bearing using press and special tool (09432-22000).
NOTE: Do not reuse the removed bearing.

Fig 15: Installing Opposite Side Taper Roller Bearing Using Press And Special Tool (09432-22000)
Courtesy of KIA MOTORS AMERICA, INC.
