Symptom Related Diagnostic Procedures

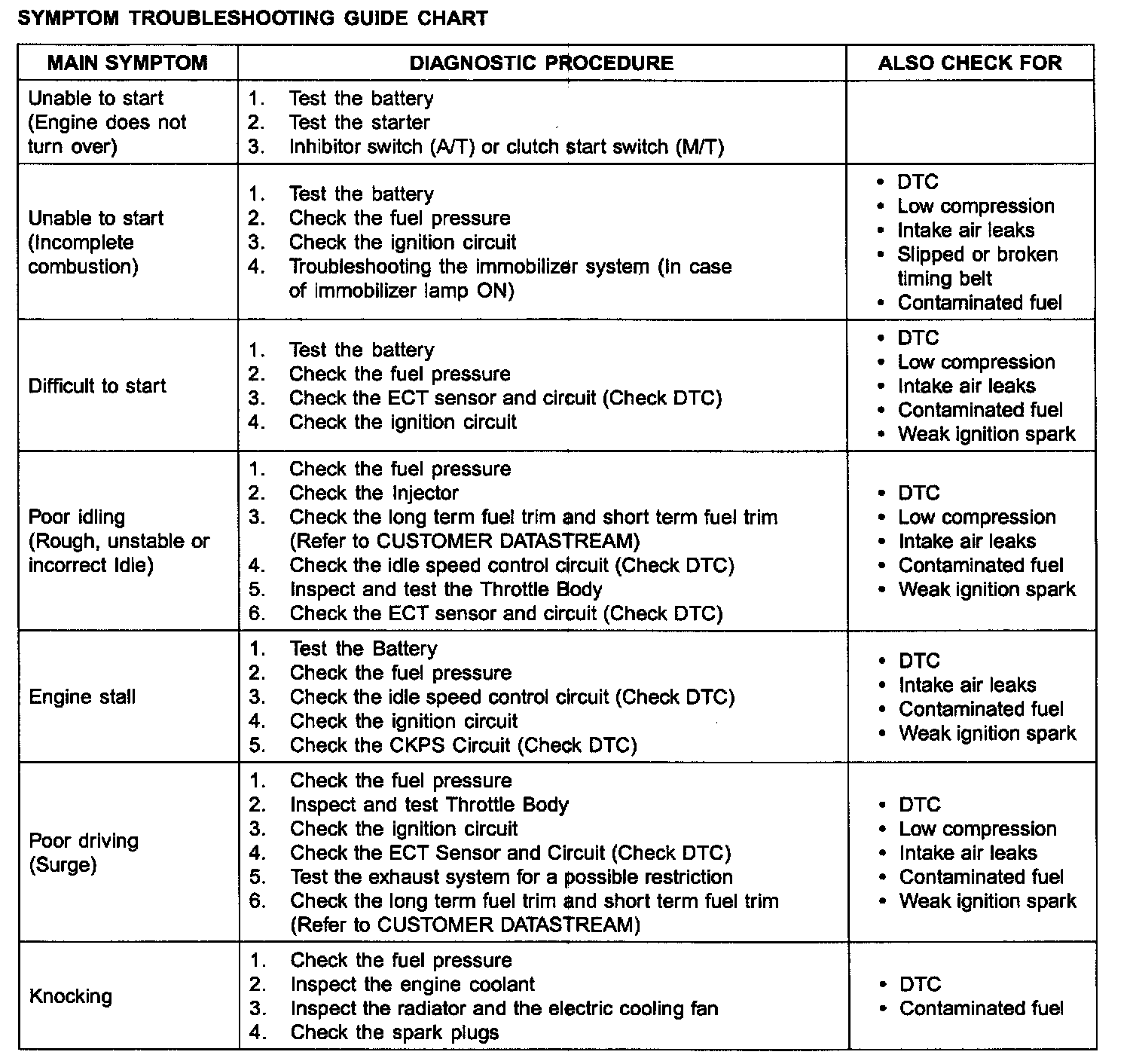

Symptom Troubleshooting Guide Chart Part 1:

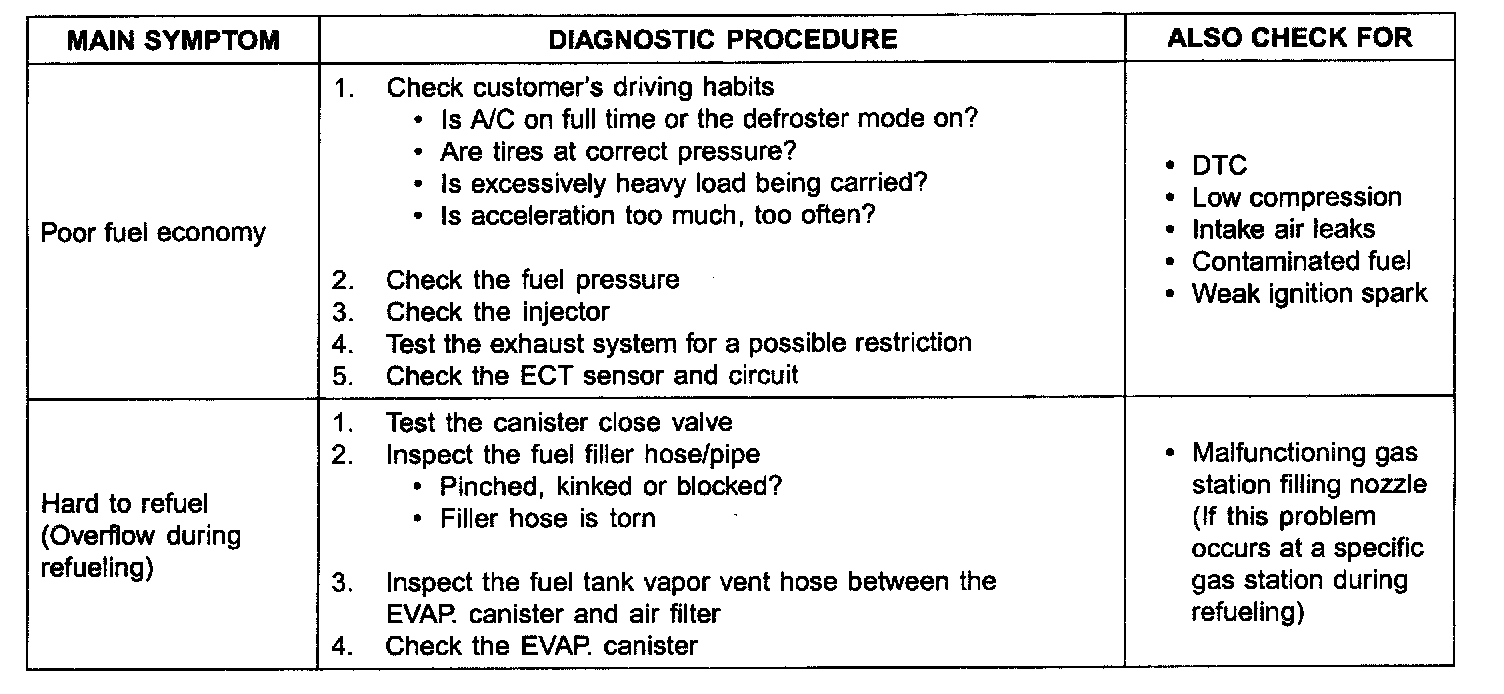

Symptom Troubleshooting Guide Chart Part 2:
