Fuses and Relays

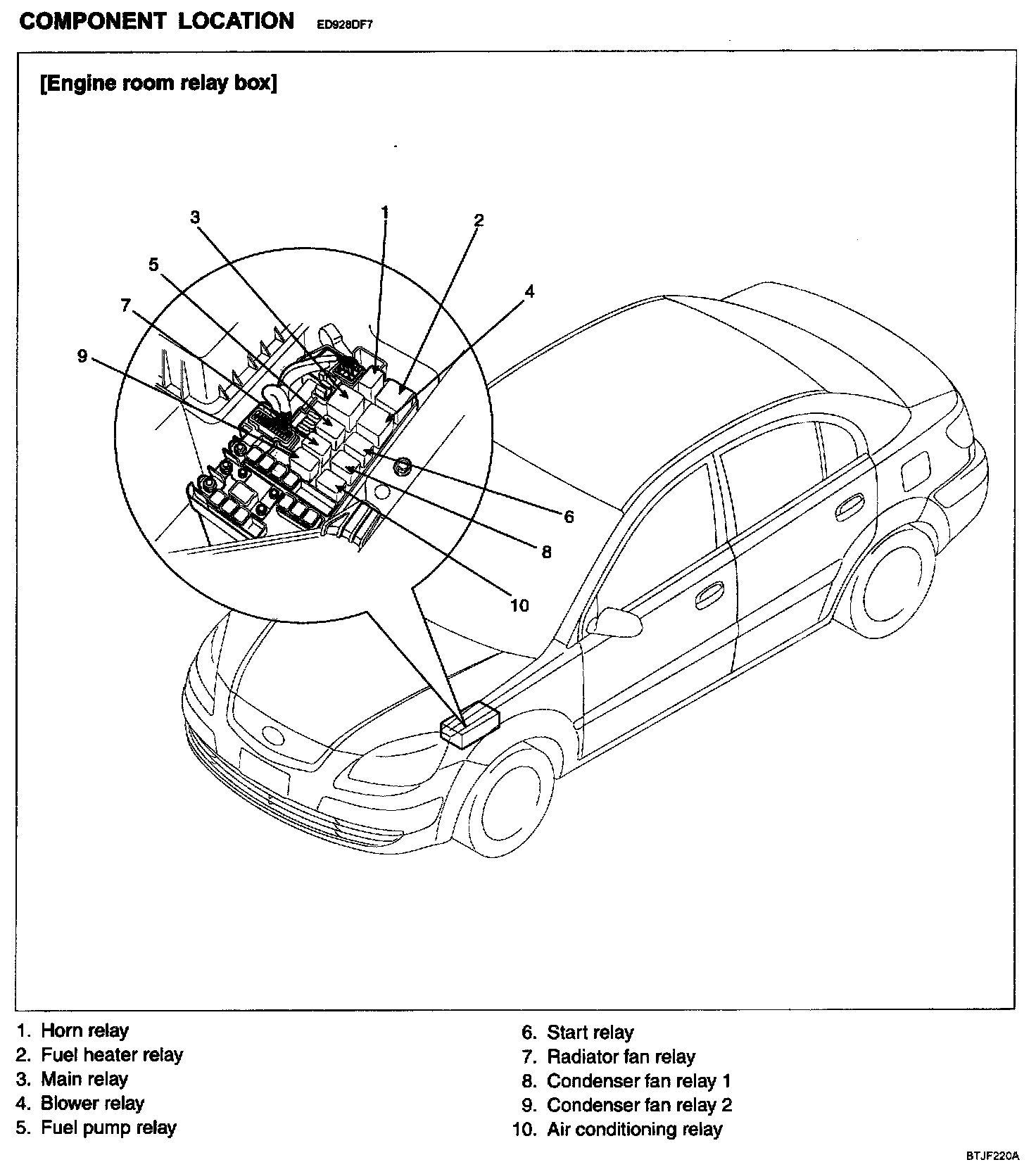

Engine Room Relay Box Component Location:

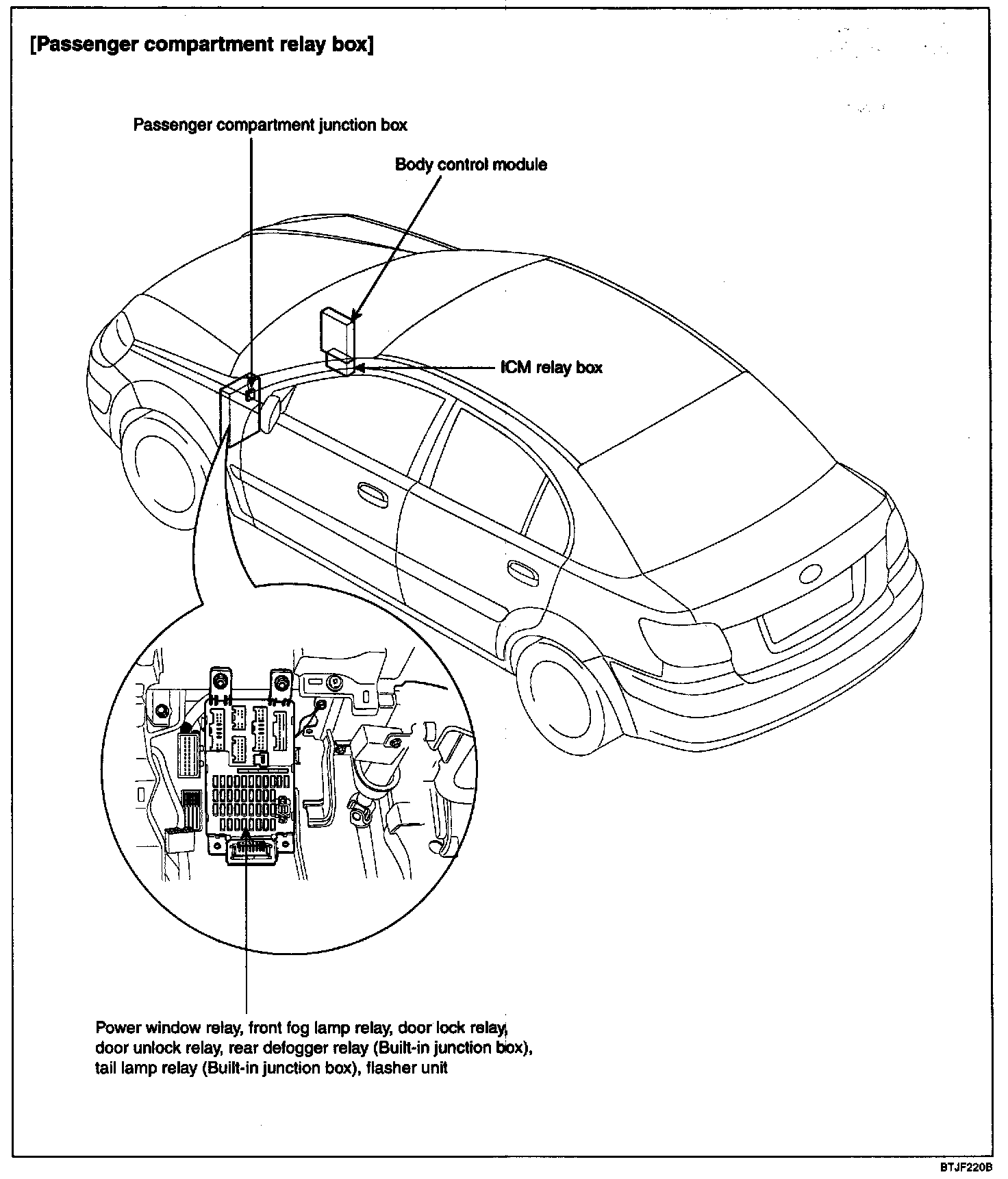

Passenger Compartment Relay Box Component Location:
