Components Location

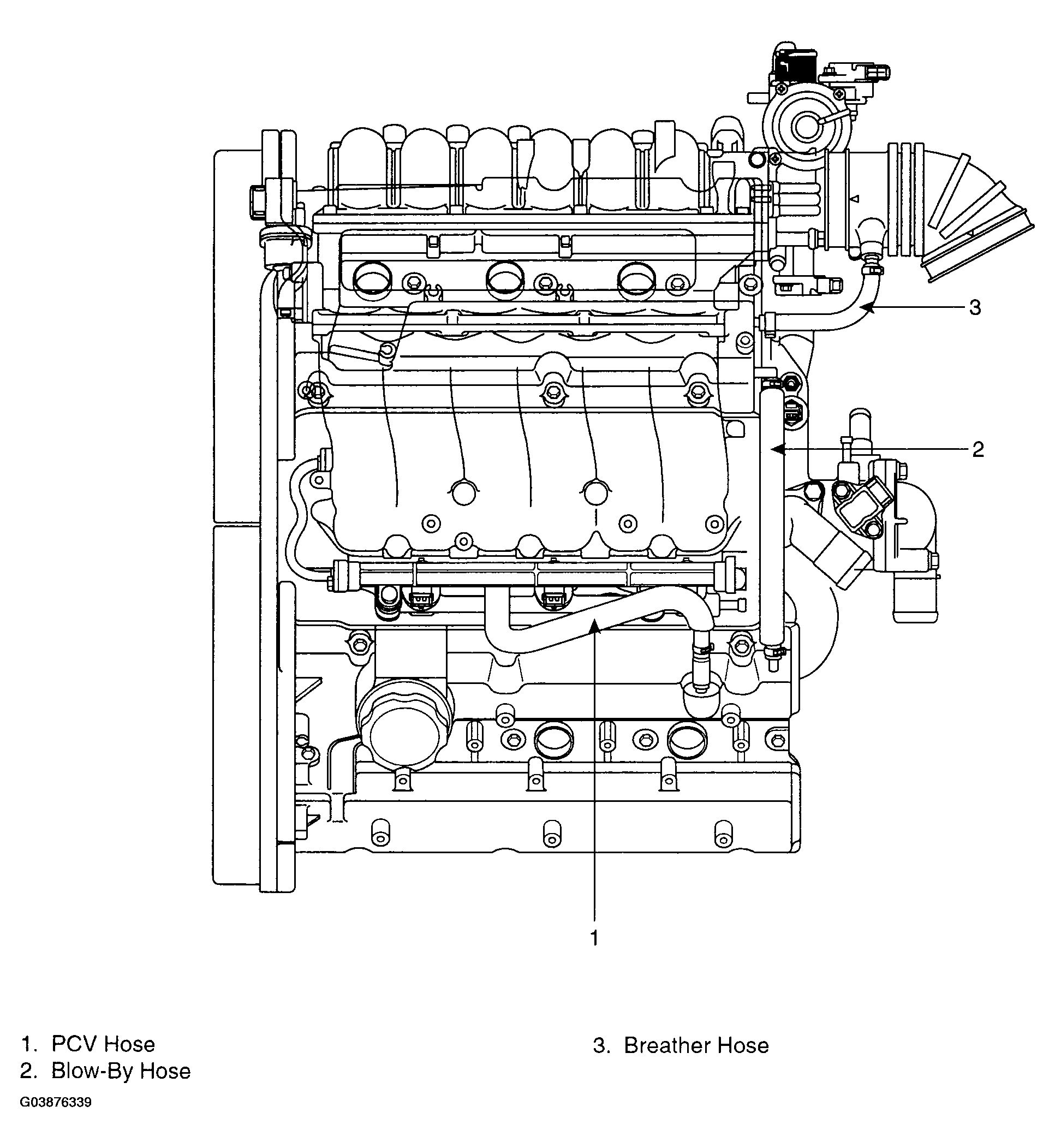

Fig 1: Identifying Crankcase Emission Control System Components Location
G03876339Courtesy of KIA MOTORS AMERICA, INC.
