Synchronizer Sleeve And Hub

  1. Install the synchronizer sleeve on the hub and check that it slides smoothly.
  2. Check that the sleeve is free from damage.
  3. Check for wear of the hub end surfaces (in contact with each gear).
    CAUTION: Replace the synchronizer hub and sleeve as a set.

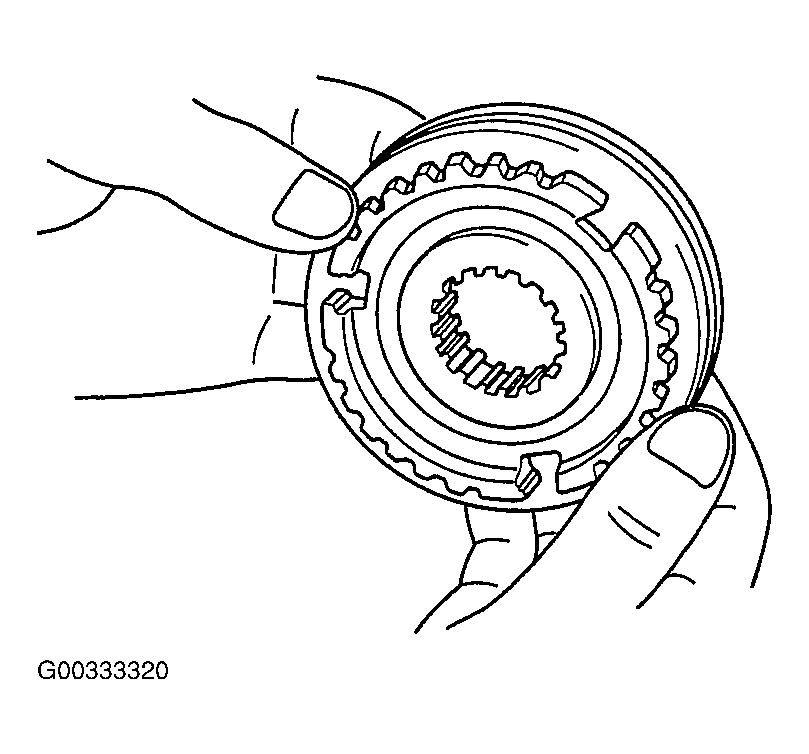

    Fig 1: Inspecting Synchronizer Sleeve And Hub
    G00333320Courtesy of KIA MOTORS AMERICA, INC.
