DTC Troubleshooting Procedures - 2.0L
>>
Troubleshooting For DTC
>>
DTC P0113: Intake Air Temperature Sensor Circuit High Input
>>
DTC Detecting Condition
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC P0113: Intake Air Temperature Sensor Circuit High Input: DTC Detecting Condition
DTC Description, ECM sets DTC P0113 if the ECM detects signal voltage higher than the possible range of a properly operating IATS.
Conditions for Setting the DTC

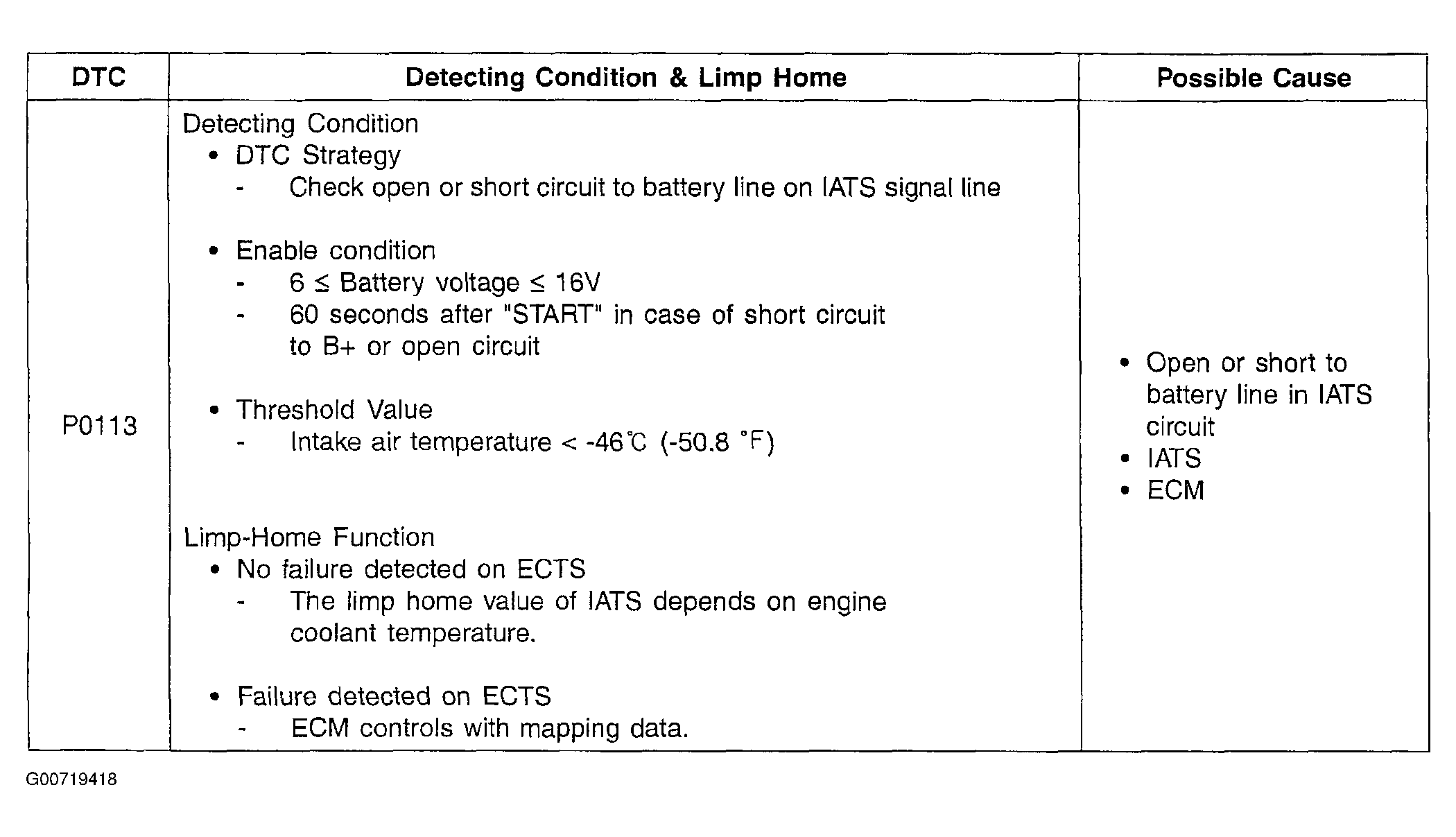

Fig 1: DTC P0113 Condition Chart
Courtesy of KIA MOTORS AMERICA, INC.
