DTC Troubleshooting Procedures - 2.0L
>>
Troubleshooting For DTC
>>
DTC P0125: Insufficient Coolant Temperature For Closed Loop Fuel Control
>>
Specification
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC P0125: Insufficient Coolant Temperature For Closed Loop Fuel Control: Specification
Fig 1: DTC P0125 Thermostat Specification
Courtesy of KIA MOTORS AMERICA, INC.

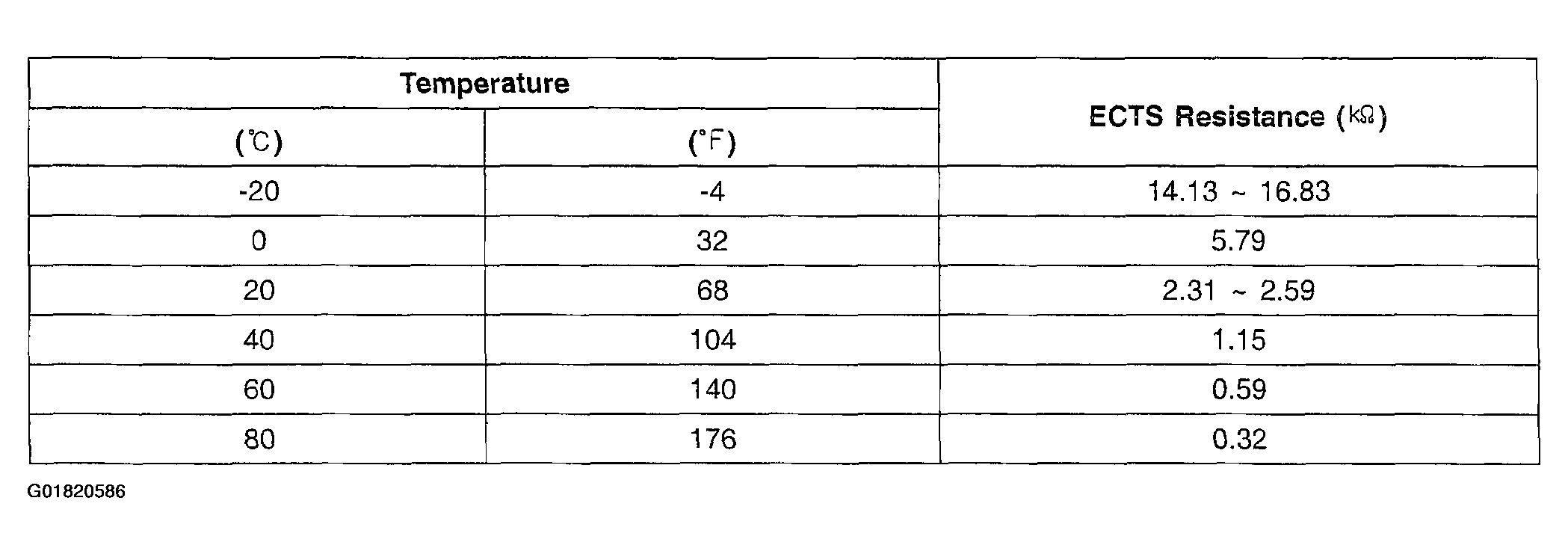

Fig 2: DTC P0125 ECTS Resistance Specification
Courtesy of KIA MOTORS AMERICA, INC.
