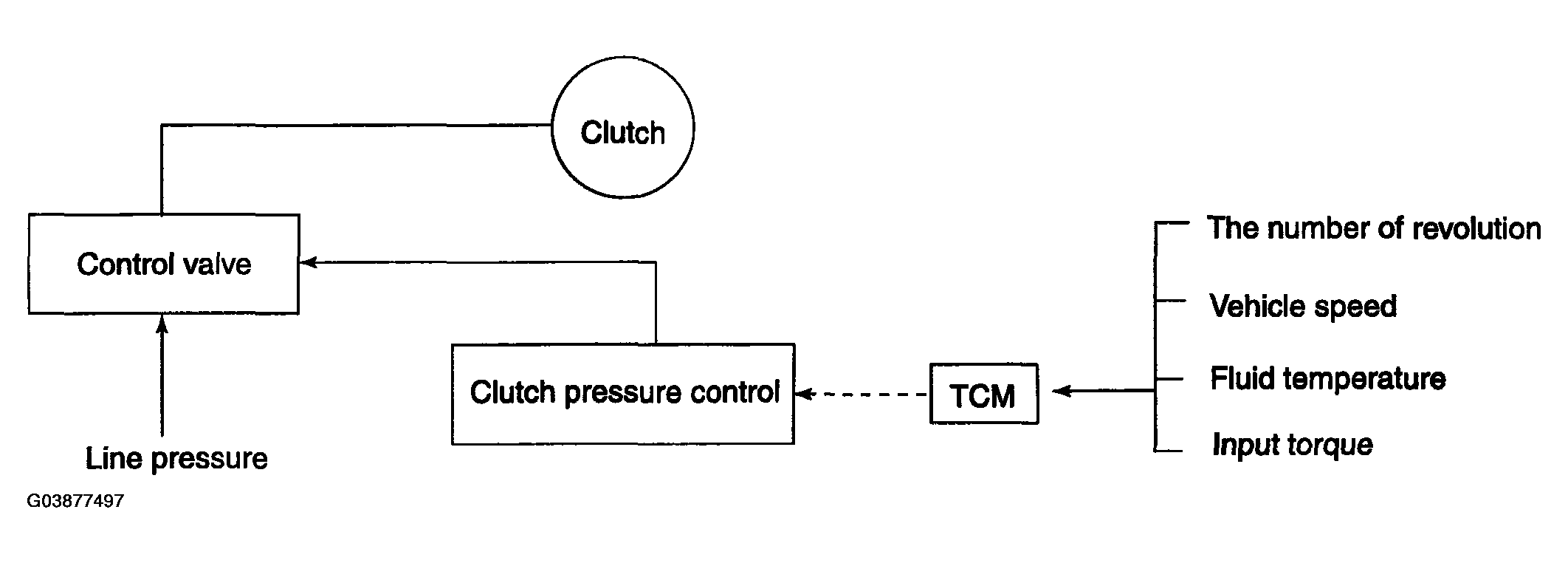

Shift Control System Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Shift description
Controls clutches with optimum timing and fluid pressure in response to engine
speed, engine torque information, and etc.
