Automatic Transaxle System: Component

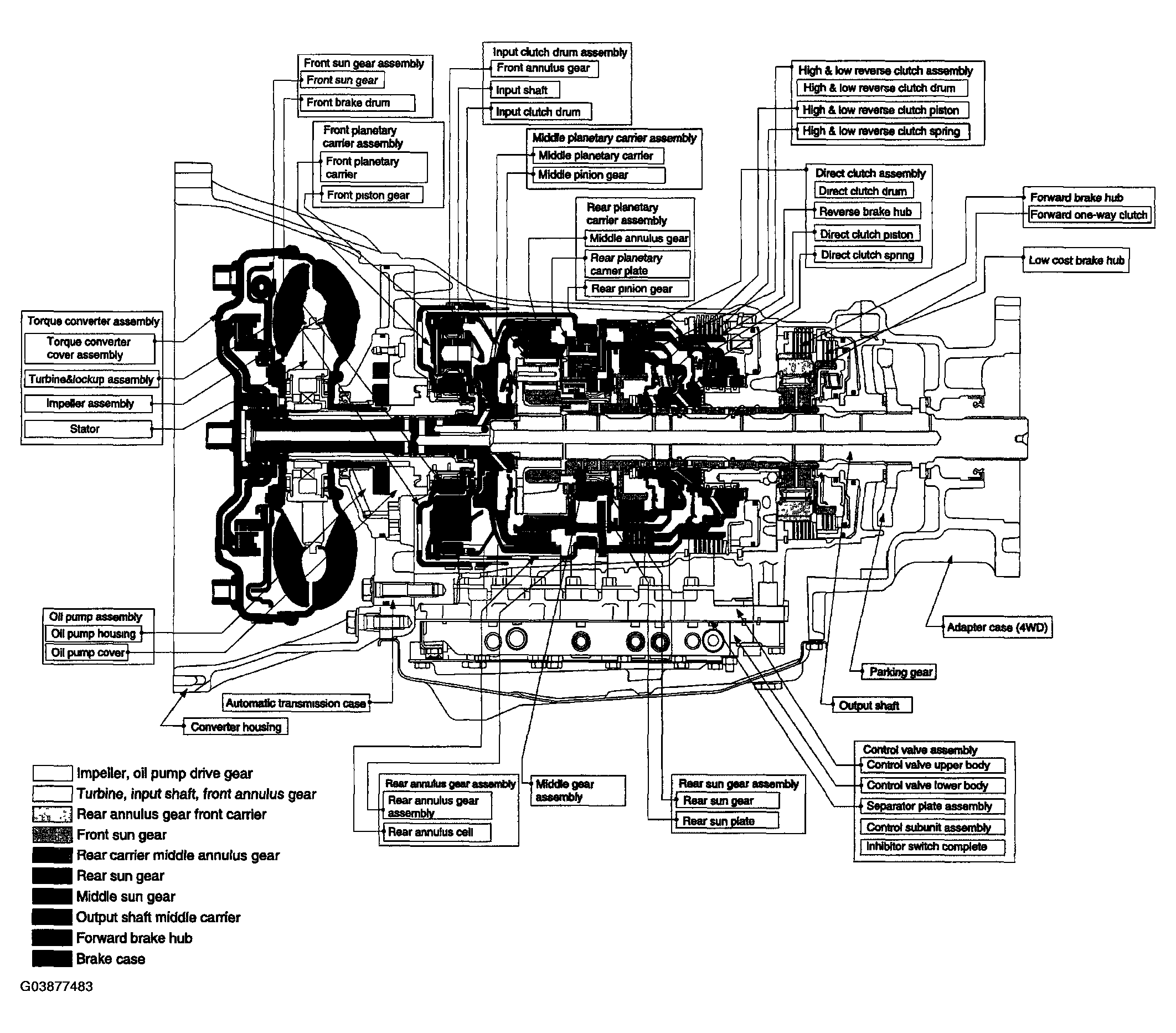

Fig 1: Identifying Components Automatic Transmission (A5SR1)
G03877483Courtesy of KIA MOTORS AMERICA, INC.
