Engine Control Module & Ignition Failure Sensor Connector Locations

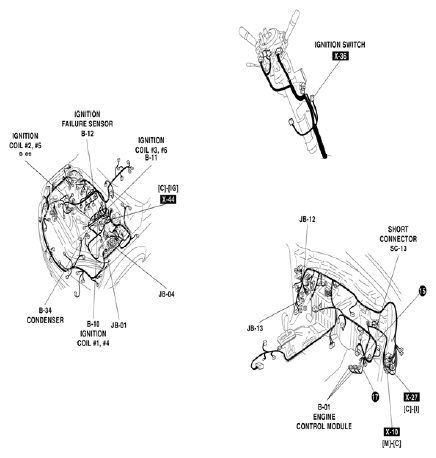

Fig 1: Engine Control Module & Ignition Failure Sensor Connector Locations
Courtesy of KIA MOTORS AMERICA, INC.
