Coil Circuit Diagram

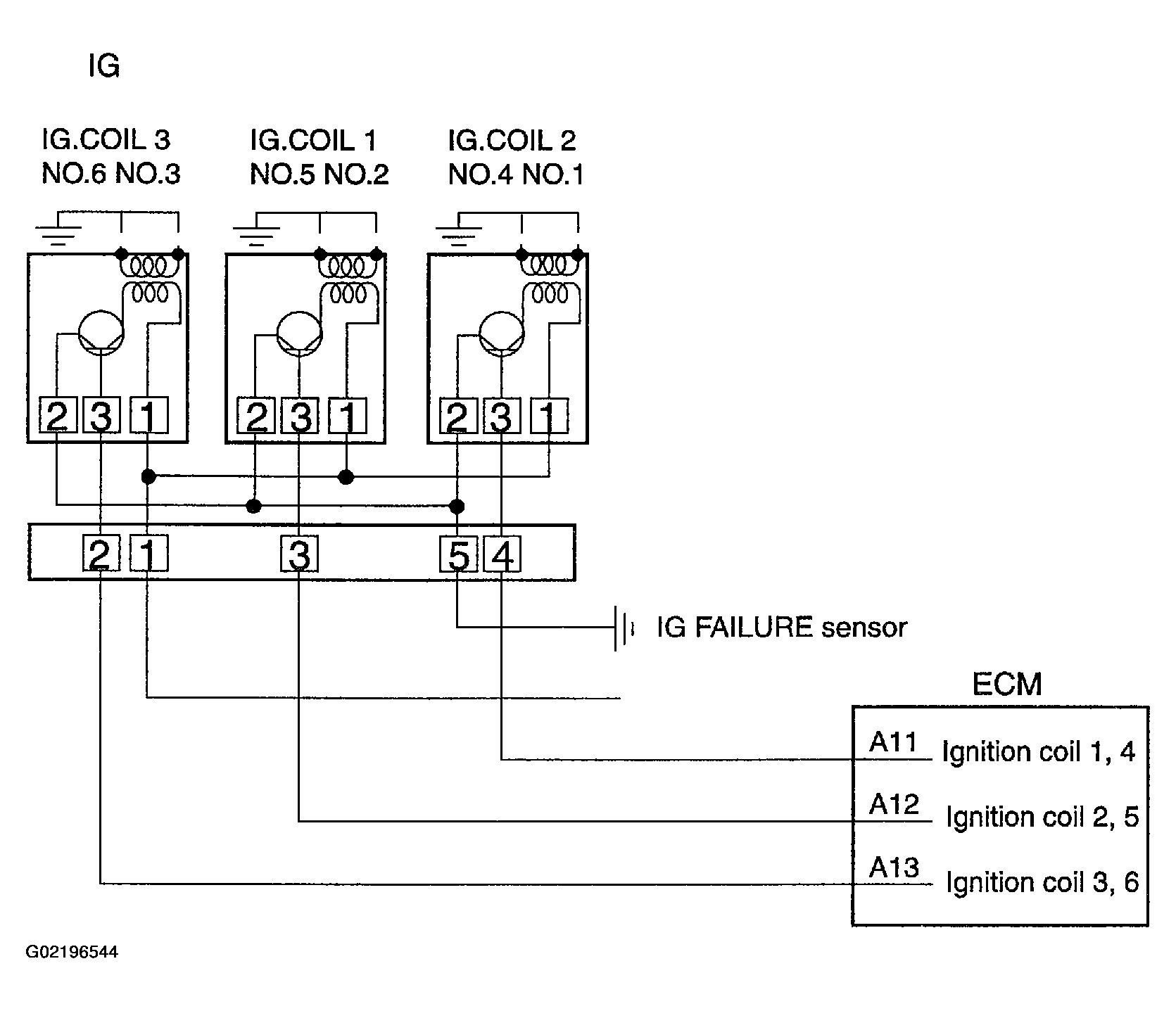

Fig 1: Illustrating Coil Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
