ECM Connector & Terminal Information
>>
Connector B-01 (C)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector B-01 (C)

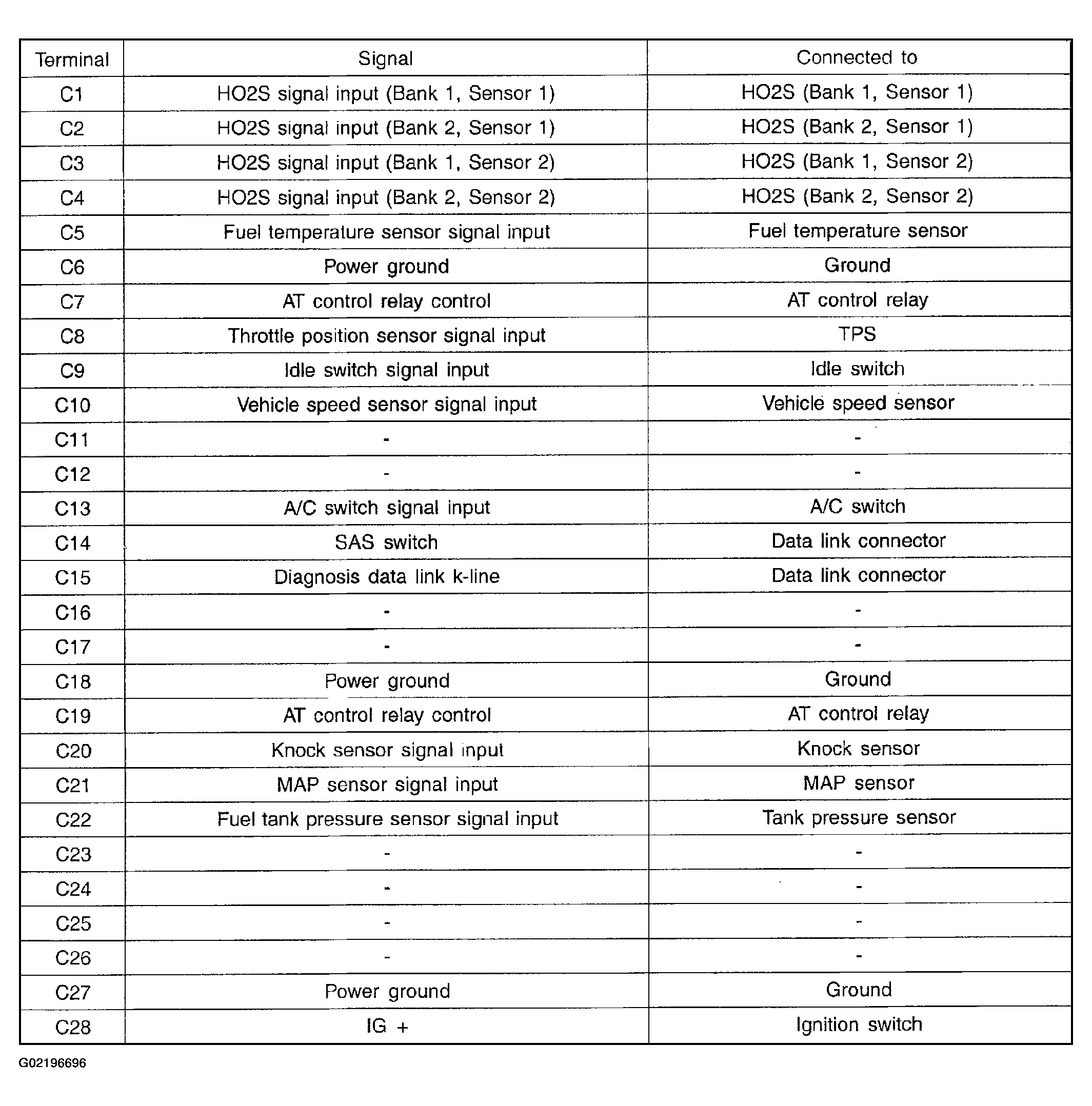

Fig 1: Connector B-01 (C)
Courtesy of KIA MOTORS AMERICA, INC.
