Component Inspection

1. Specification

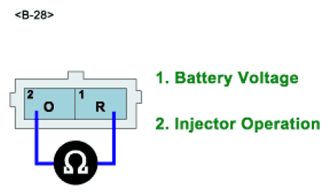

   Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Injector Connector (Component Side)


   RESISTANCE REFERENCE CHART



   Temp. (°C)	Temp. (°F)	Resistance (Ω)
   20	68	13.5~15.5

YES

1. Go to "W/HARNESS INSPECTION " procedure.

NO

1. Check Injector for contamination, deterioration, or damage. Substitute with a known-good Injector and check for proper operation. If the problem is corrected, replace Injector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
