Starting System: Diagrams

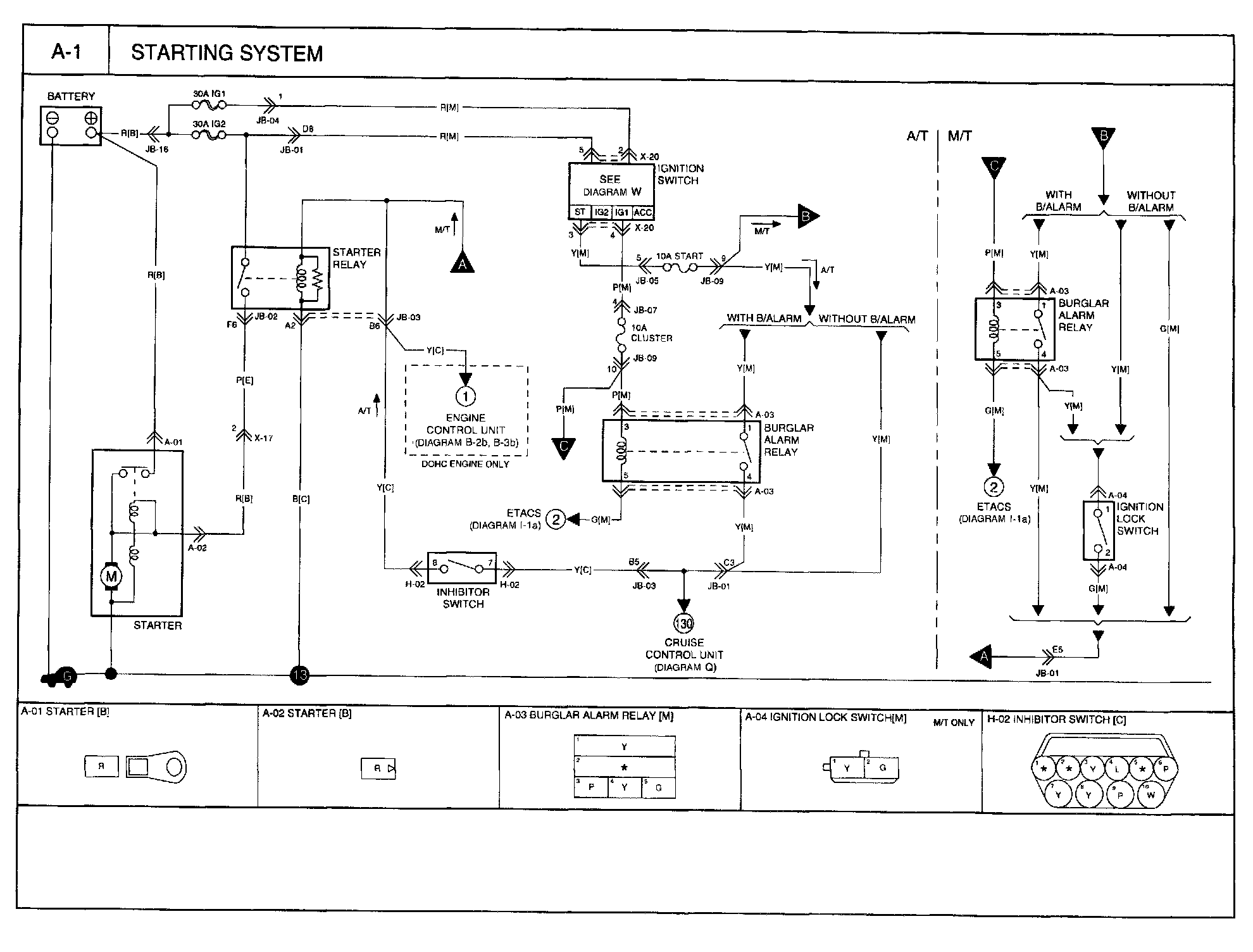

Diagram A-1:

Routing View A-1:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
