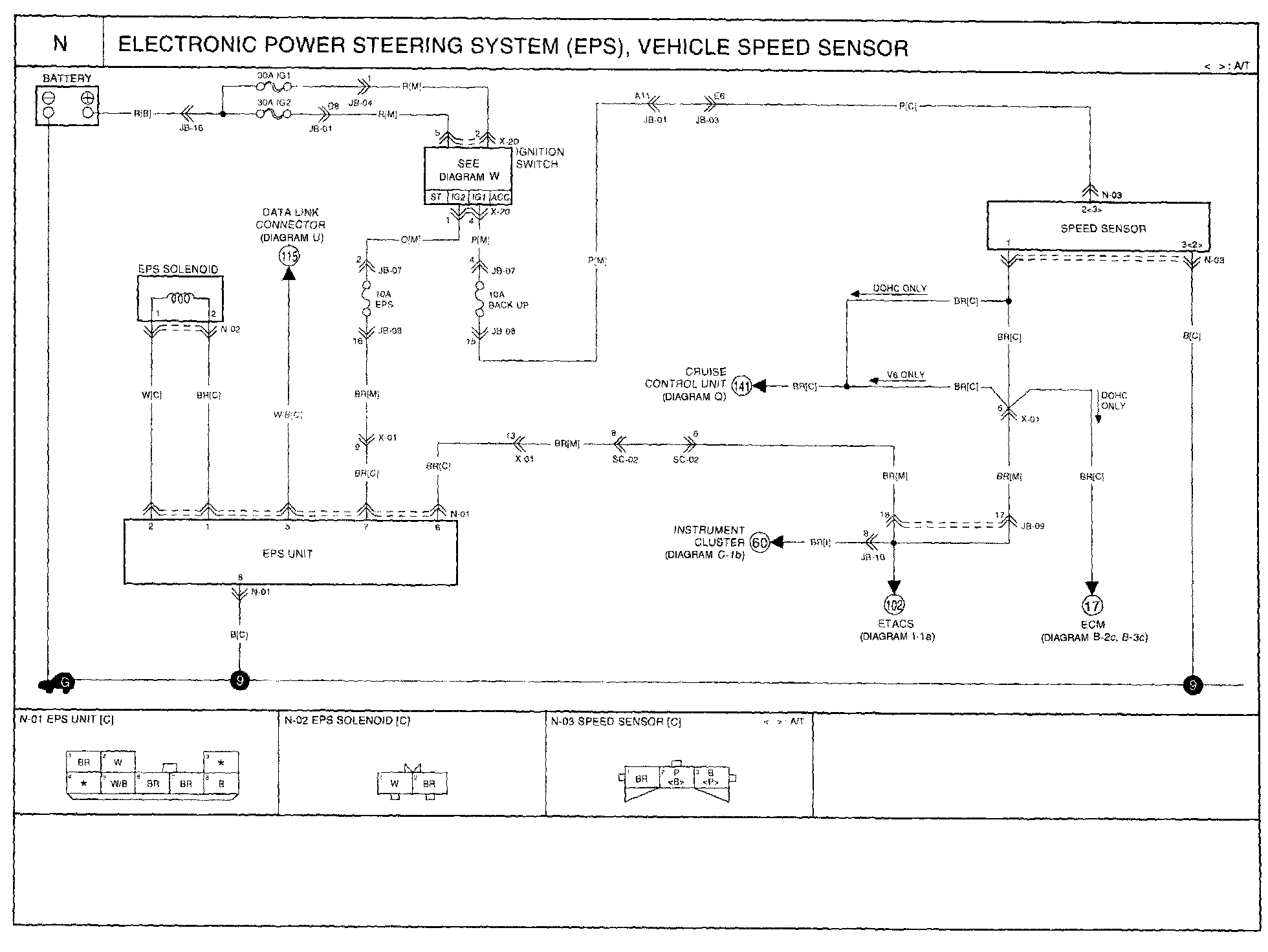

Vehicle Speed Sensor: Diagrams

Diagram N:

Routing View N:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
