Ground Distribution

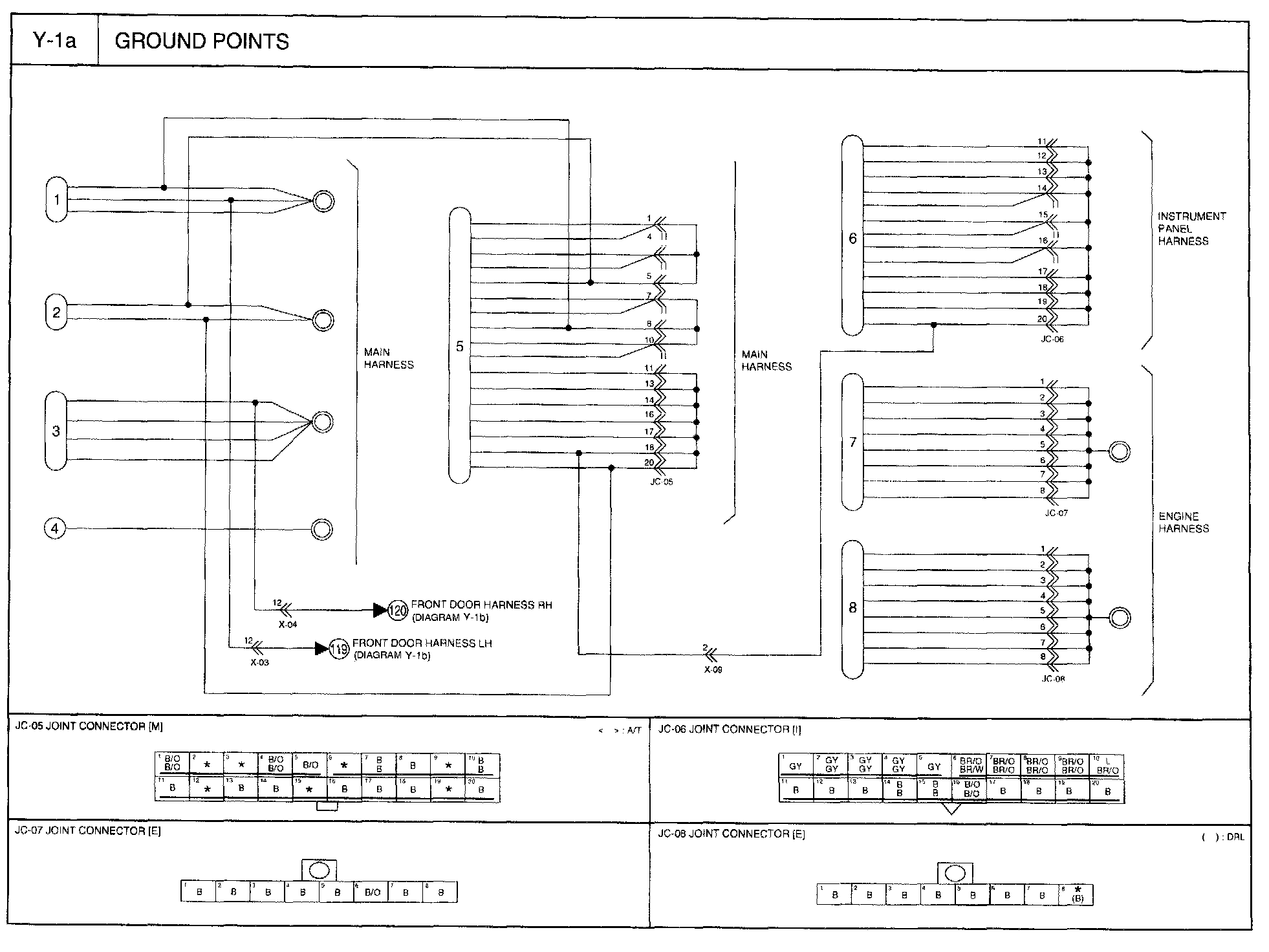

Diagram Y-1a:

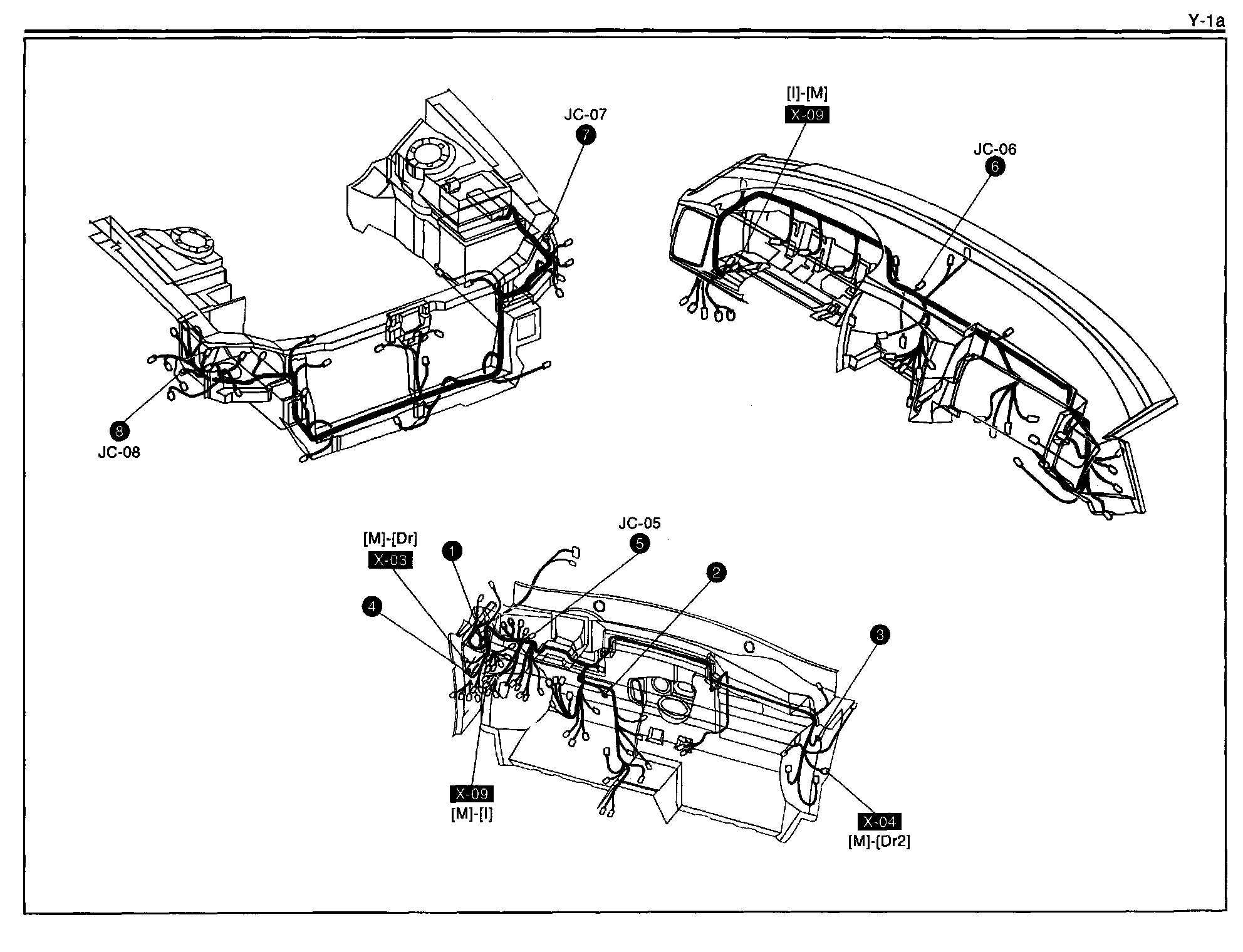

Routing View Y-1a:

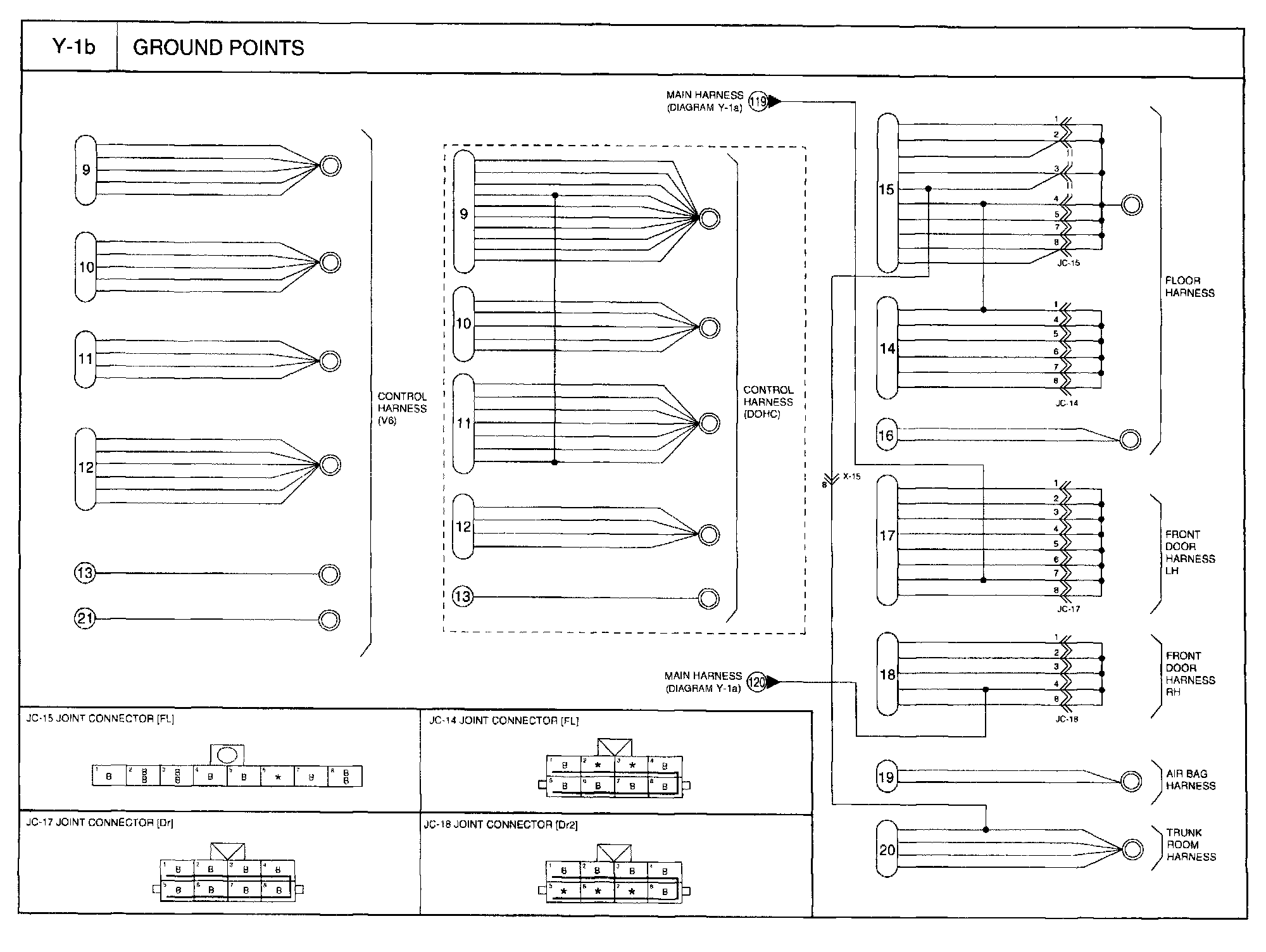

Diagram Y-1b:

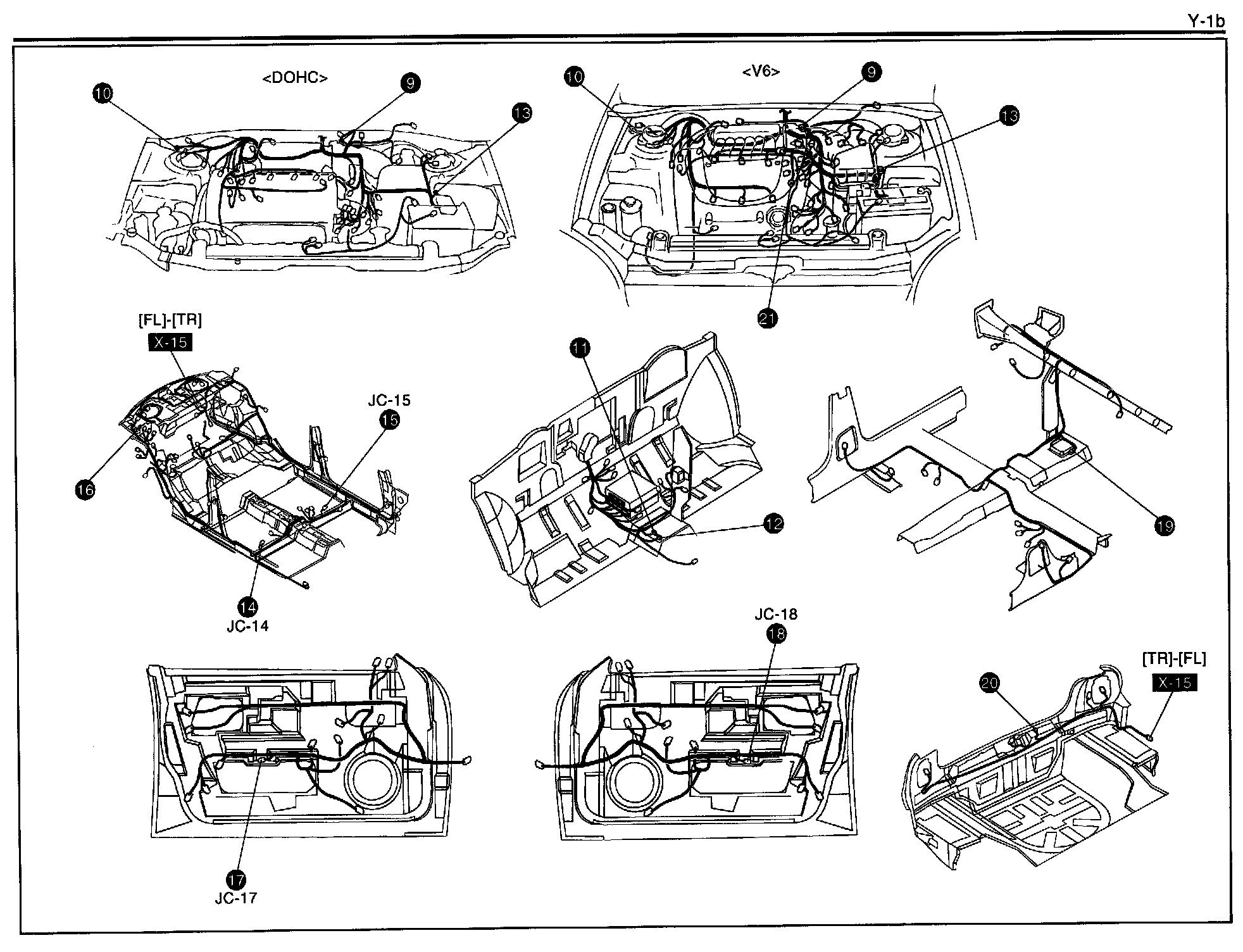

Routing View Y-1b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
