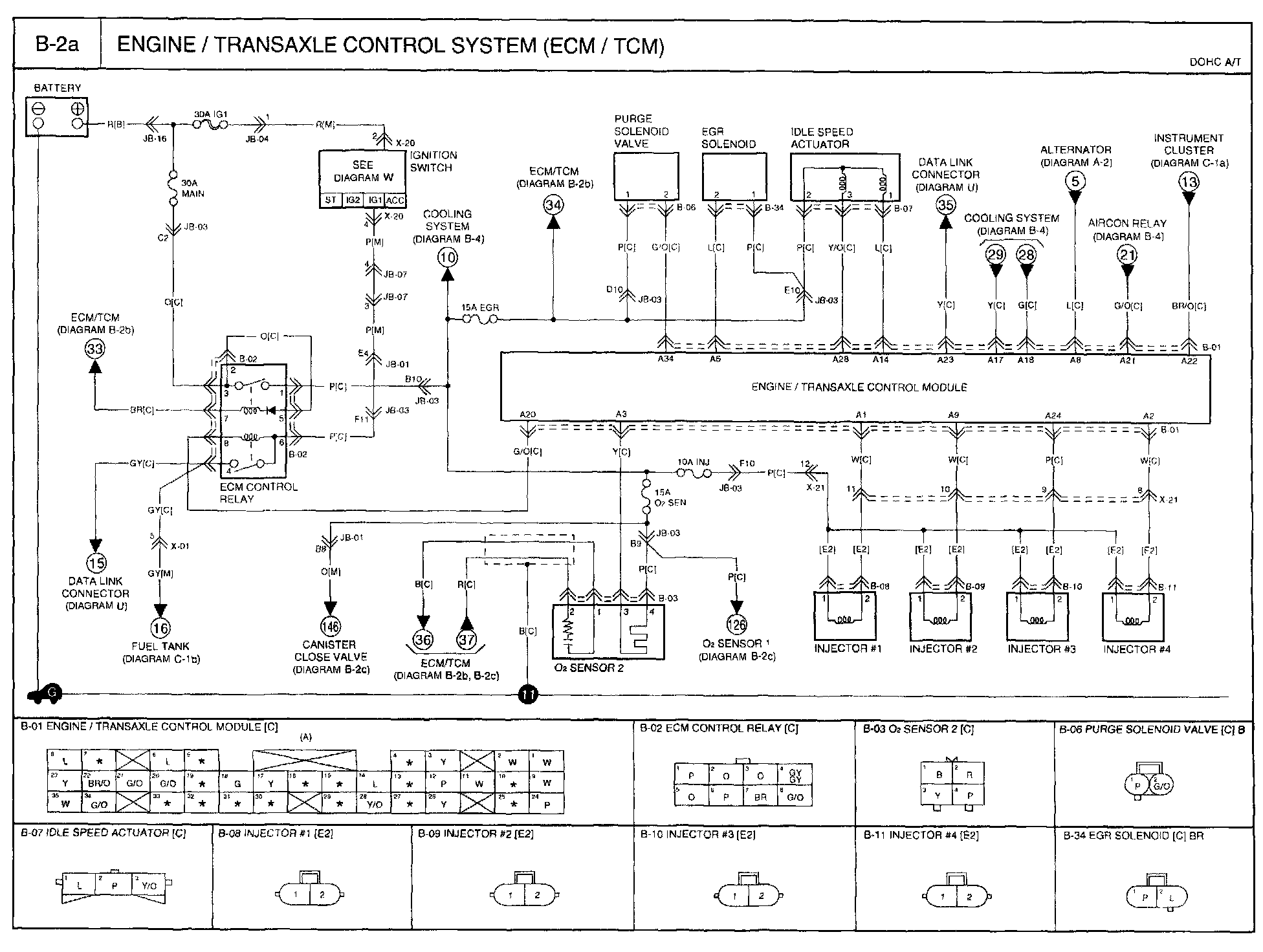

Diagram B-2a
Diagram B-2a:
Routing View B-2a:
Next Diagram Diagram B-2b
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
