Valve Body: Components(A): Notes

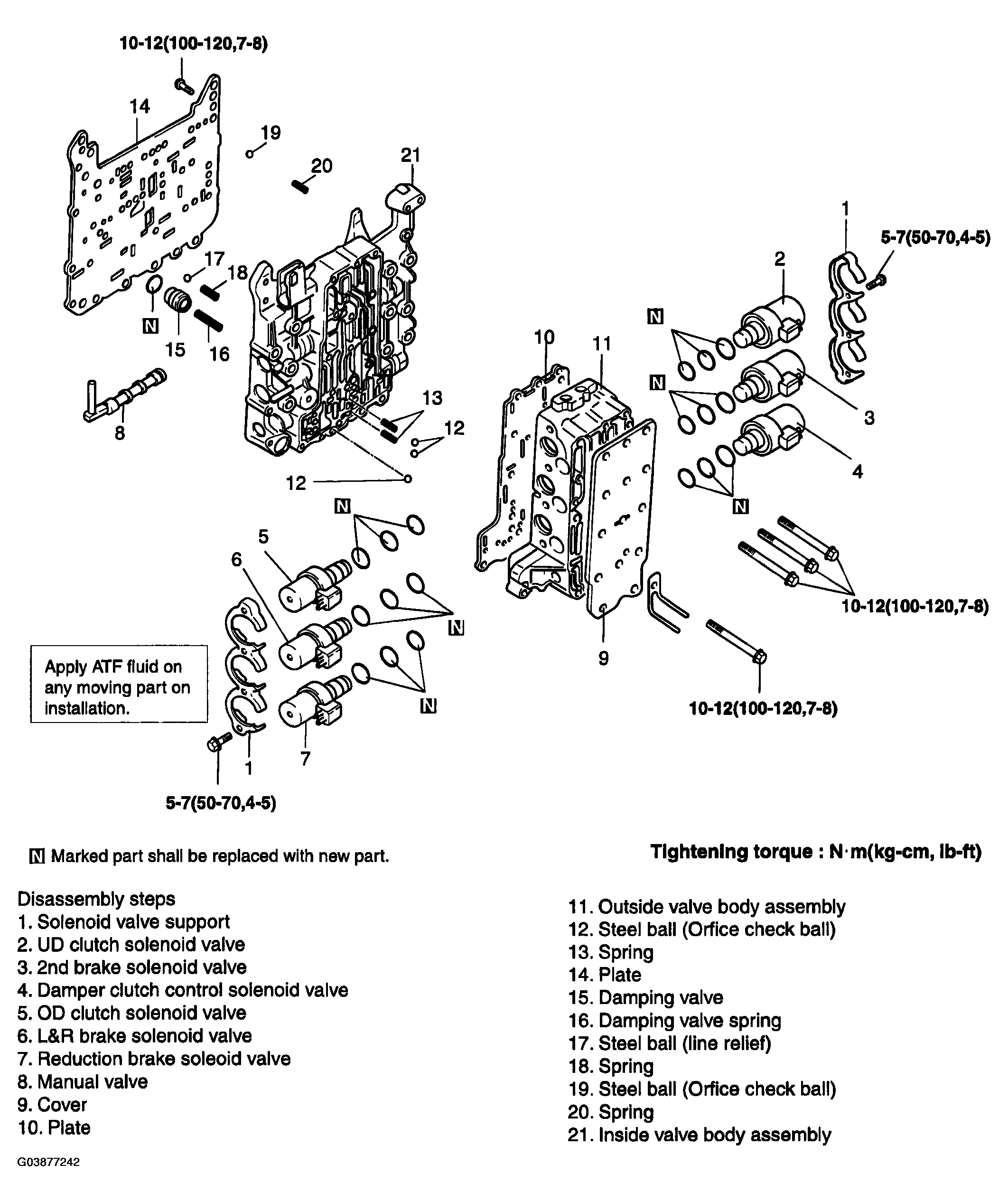

Fig 1: Exploded View Of Valve Body Components(A)

G03877242

Courtesy of KIA MOTORS AMERICA, INC.
