Direct Clutch: Components

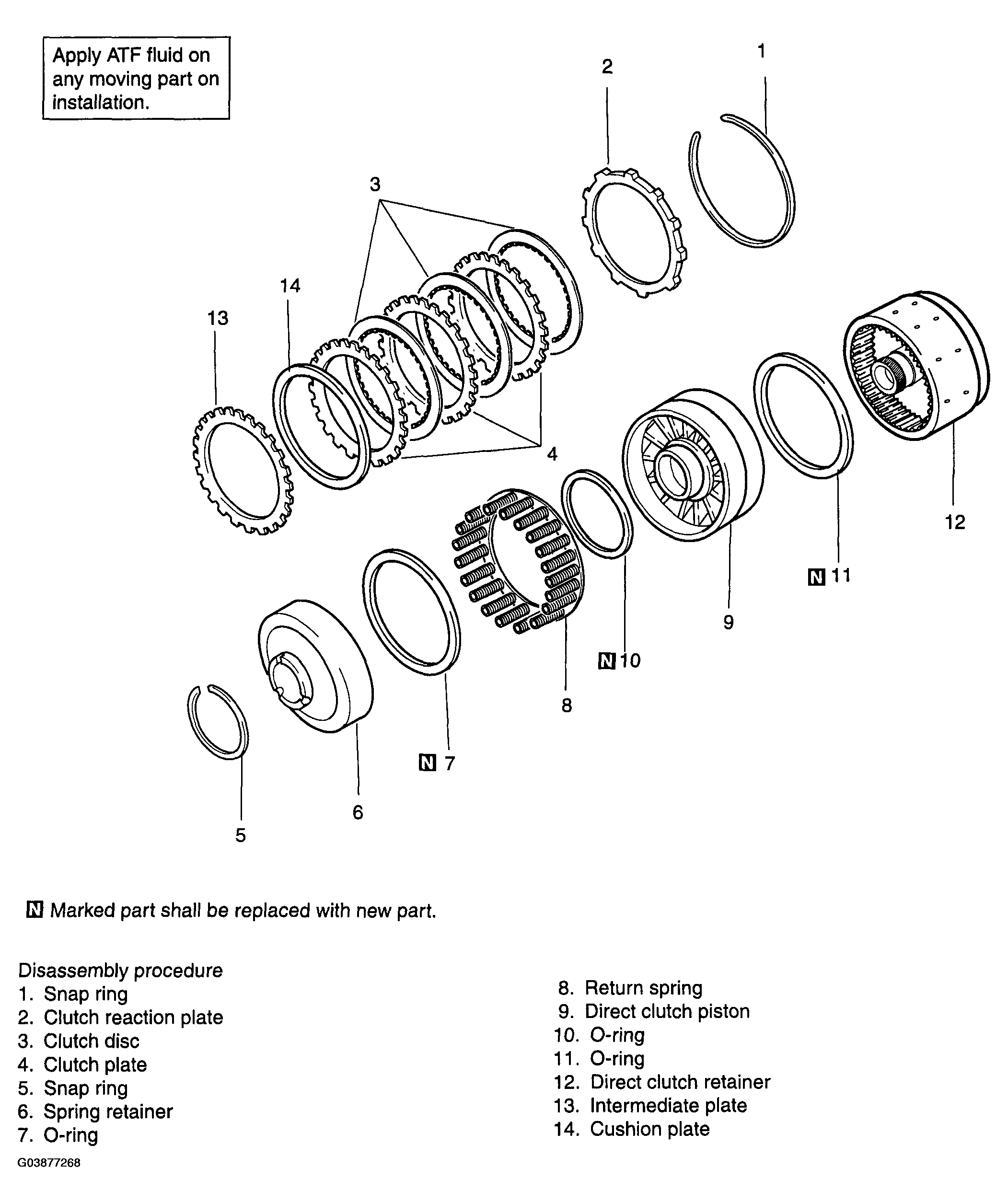

Fig 1: Exploded View Of Direct Clutch Components

G03877268

Courtesy of KIA MOTORS AMERICA, INC.
