Yaw-Rate Sensor: Components

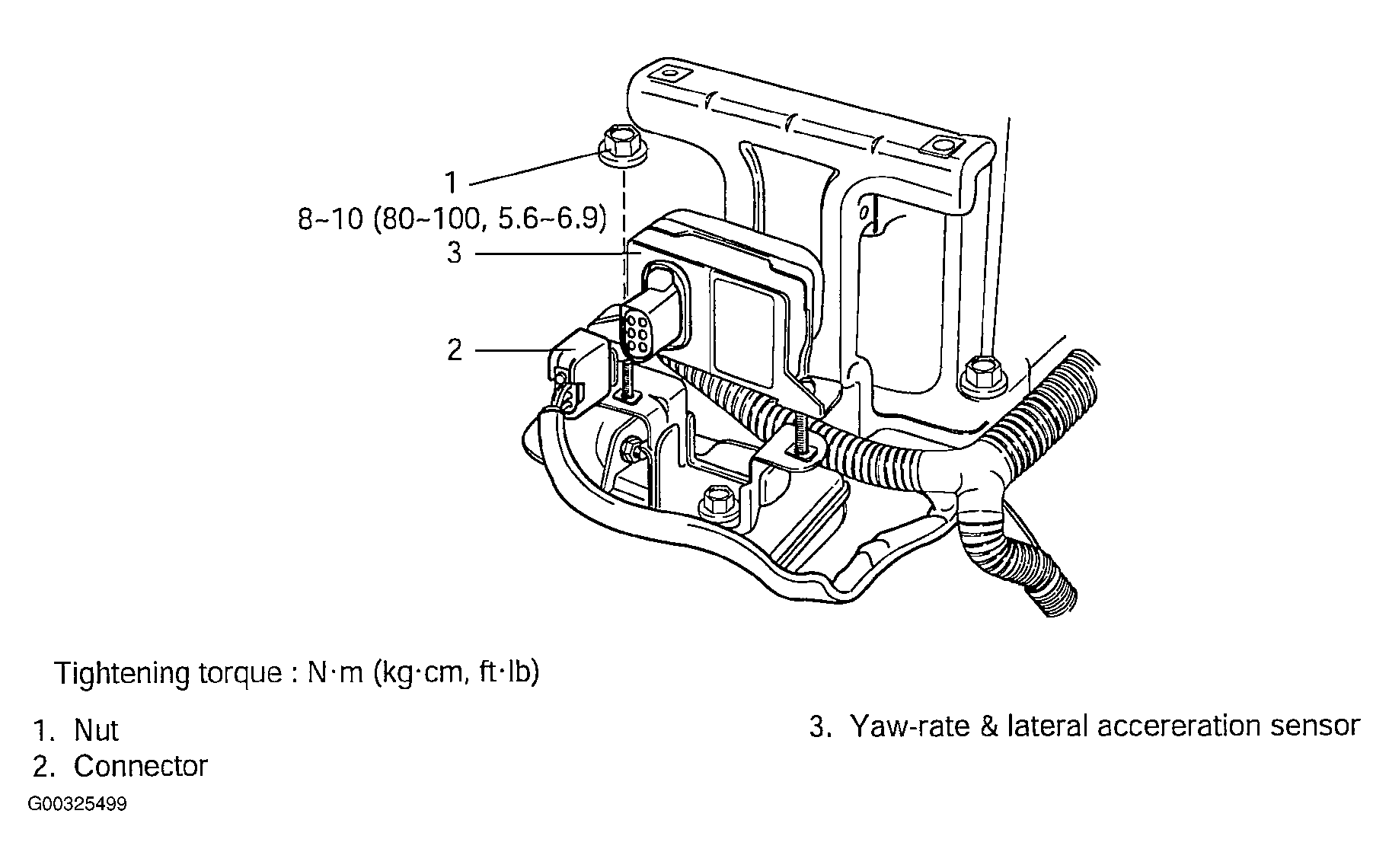

Fig 1: Identifying Yaw-Rate Sensor

G00325499

Courtesy of KIA MOTORS AMERICA, INC.
