Seat Belt Warning Timer

  1. When the ignition is switched ON, the seat belt warning indicator will illuminate (period: 1.0 second, duty rate : 50%) and the chime bell will sound (period: 1.0 second, duty rate : 50%) for total of 6 seconds.
  2. If the ignition is switched off while the seat belt warning indicator and chime bell are active (Step 1) the indicator and chime bell will be switched OFF. If the seat belt is sensed as fastened during indicator and chime bell output, the chime bell will switch OFF however the seat belt warning indicator will stay illuminated for the remaining seconds.
  3. If the seat belt is removed, with the ignition switched ON, the seat belt warning indicator and chime bell will activate for 6 seconds.

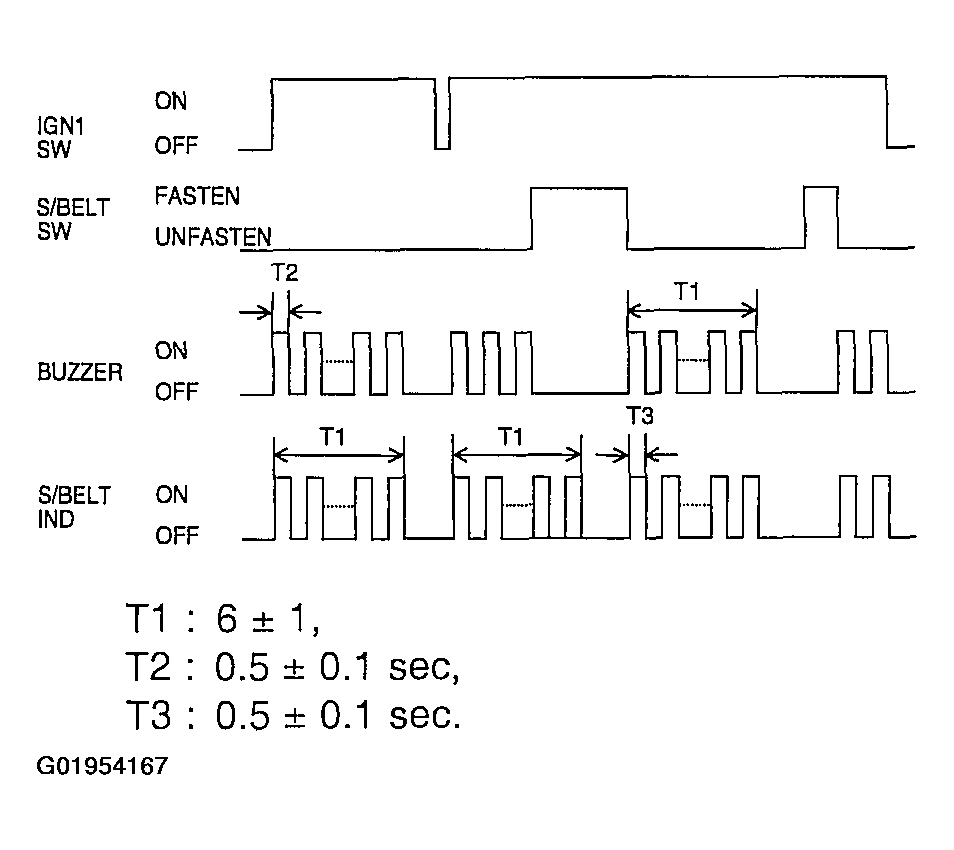

    Fig 1: Illustrating Seat Belt Warning Timer Function Diagram
    G01954167Courtesy of KIA MOTORS AMERICA, INC.
