Diagnostic Troubleshooting Flow

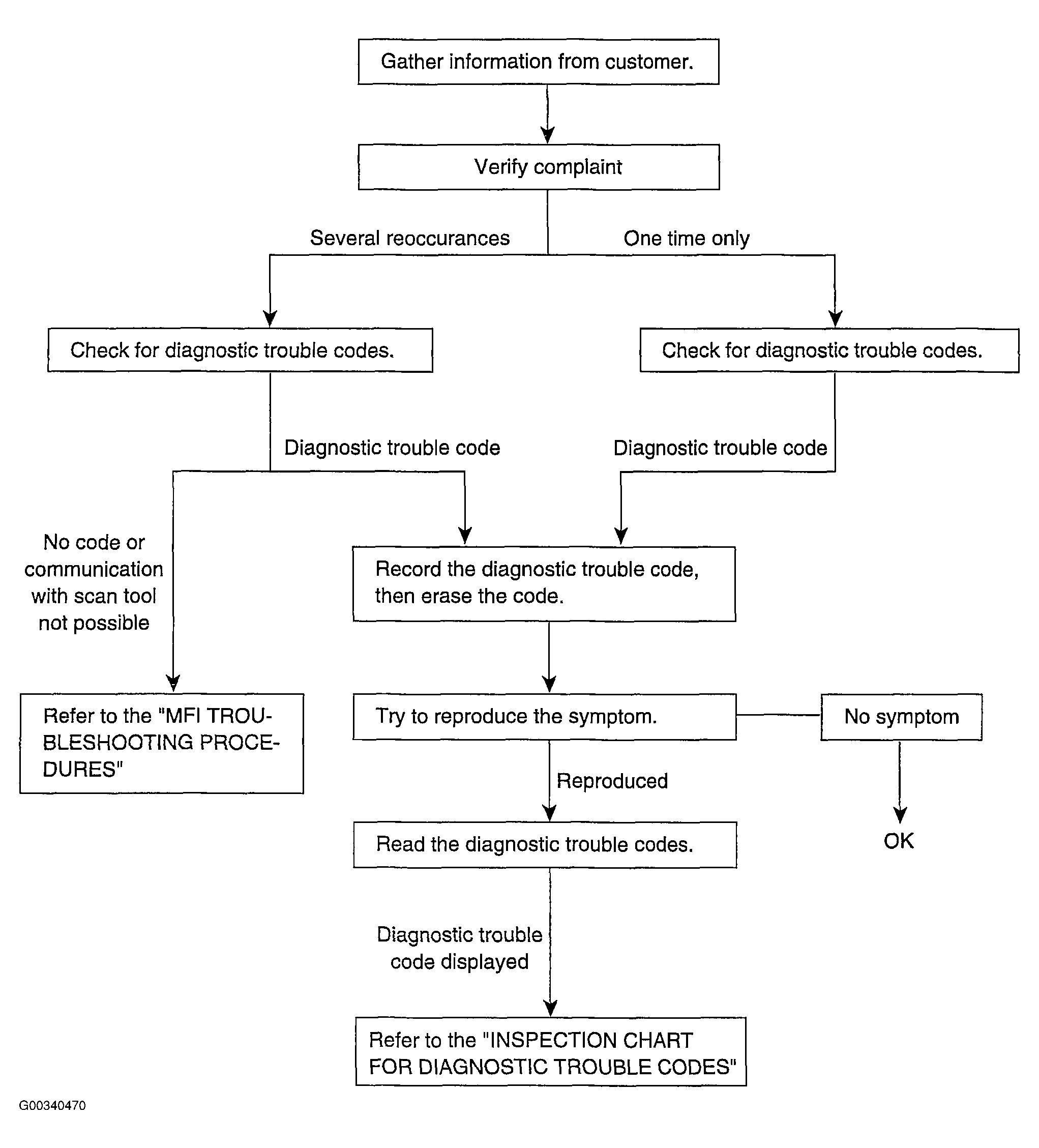

Fig 1: Identifying Diagnostic Troubleshooting Flow Chart
G00340470Courtesy of KIA MOTORS AMERICA, INC.
