Ecu Side Connector: C-Connector

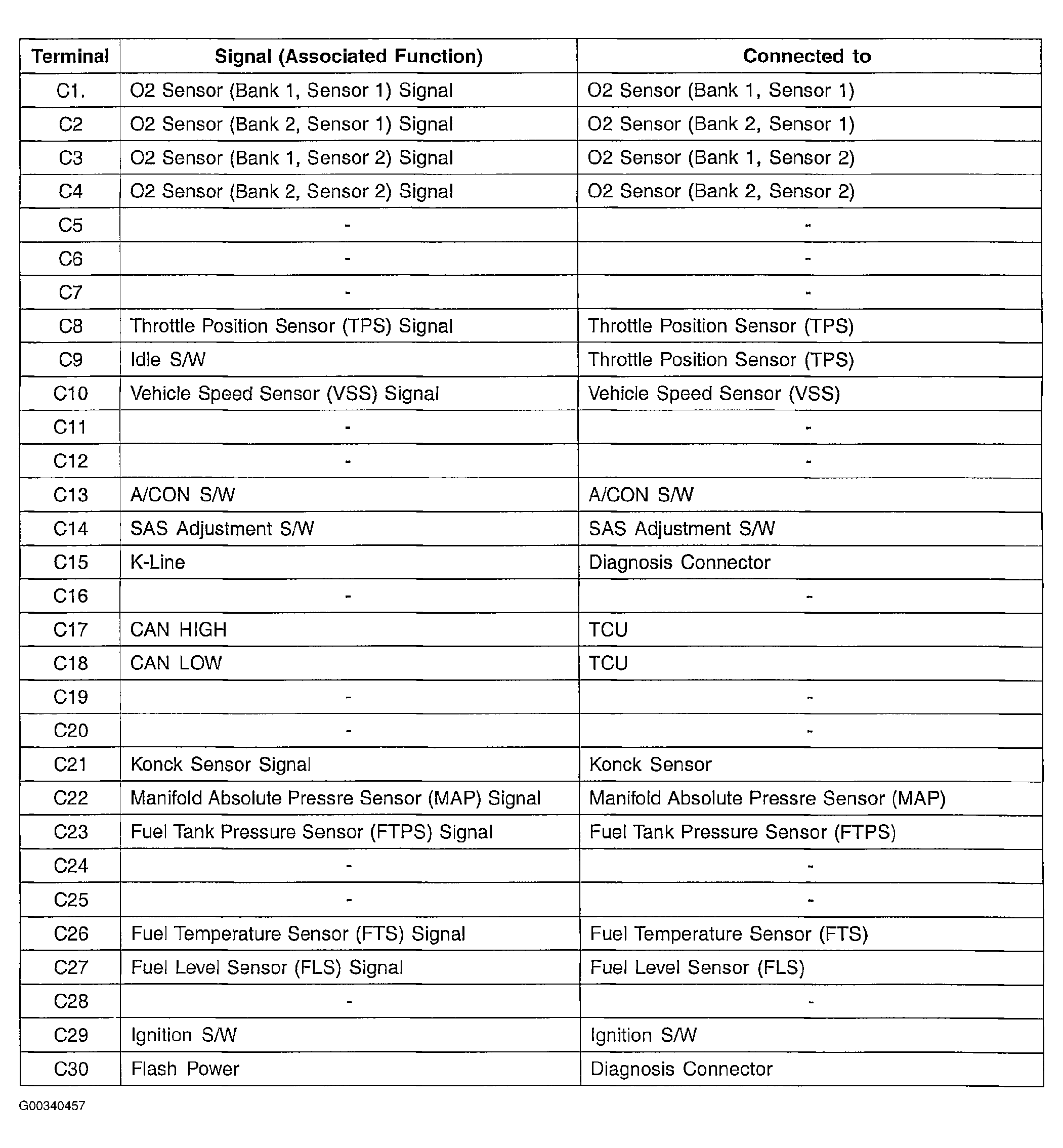

Fig 1: Identifying ECU C-Connector Terminal Identification
G00340457Courtesy of KIA MOTORS AMERICA, INC.
