Normal Fluid Pressure Specification Table

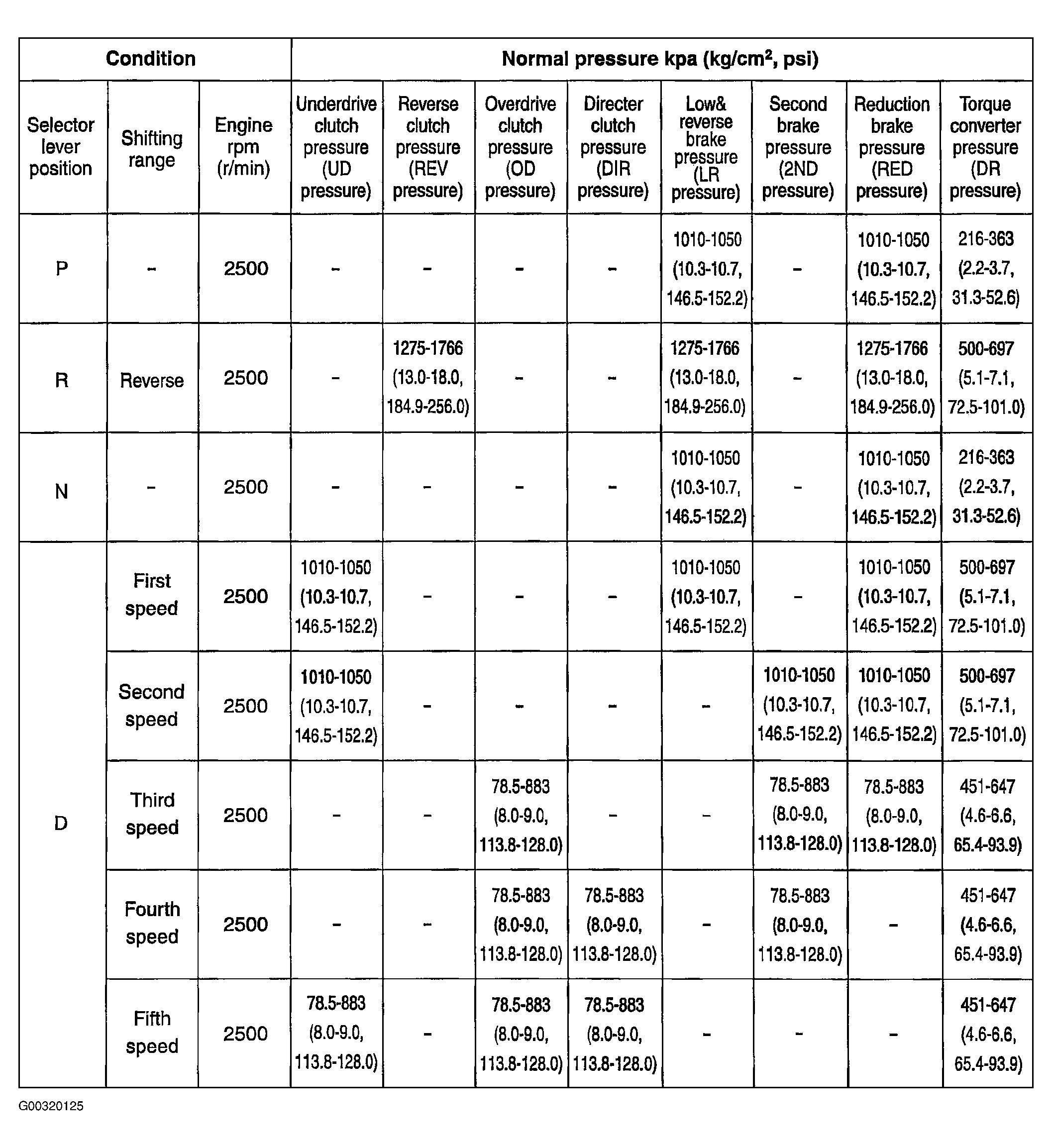

Fig 1: Normal Fluid Pressure Specification Table
G00320125Courtesy of KIA MOTORS AMERICA, INC.
