Control Circuit Inspection

Ignition "OFF"
Disconnect ECM connector
Measure resistance between terminal 2 of the PCSV harness connector and 42 of the ECM harness connector
1. Specification: Approx. 0Ω

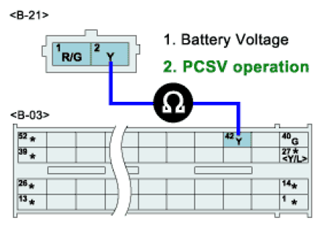

  Fig 1: Measuring Resistance Between Terminal 2 Of PCSV Harness Connector And 42 Of ECM Harness Connector
Is resistance within the specification?
YES
1. Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
1. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
