Standard Flow Of Diagnostic Troubleshooting: Notes

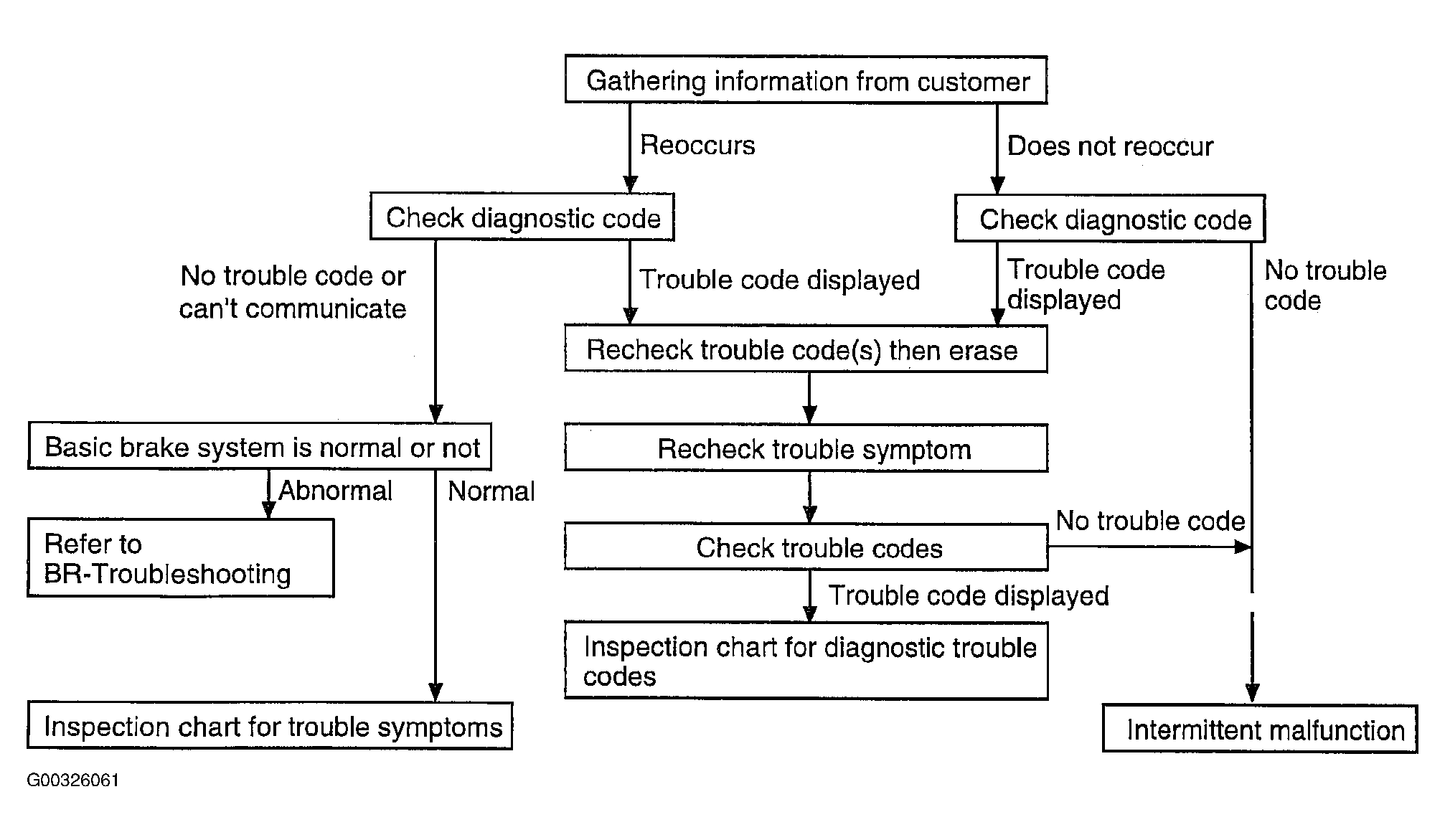

Fig 1: Identifying Anti-Lock System & Traction Control System Troubleshooting Chart
G00326061Courtesy of KIA MOTORS AMERICA, INC.

Using the customer problem analysis check sheet for reference, ask the customer in as much detail as possible about the problem.
